GW8536MIC 8MP 4K IP POE 3.6mm Fixed Lens Turret Security Camera, Built-In Mic, Part of the GW Security Collection of security cameras for sale

8 Channel NVR Security Camera System with 4 * 8MP IP Turret 3.6mm Fixed Lens Camera, Face Recognition, Human & Vehicle Detection, Built-in Mic, PoE - Image 6

8 Channel NVR Security Camera System with 4 * 8MP IP Turret 3.6mm Fixed Lens Camera, Face Recognition, Human & Vehicle Detection, Built-in Mic, PoE

Name: 8 Channel NVR Security Camera System with 4 * 8MP IP Turret 3.6mm Fixed Lens Camera, Face Recognition, Human & Vehicle Detection, Built-in Mic, PoE | GW Security
SKU: GW8536MIC4-1T
Price: 749.00 USD
Availability: InStock
Rating: 4.33 (18 reviews)

Rated 4.33 out of 5 based on 18 customer ratings

(18 customer reviews)

Original price was: $1,249.99.Current price is: $749.00.

SUPERIOR PRODUCTS 2 YEAR WARRANTY

30 DAY MONEY BACK GUARANTEE

LIVE USA TECHNICAL SUPPORT

FREE SHIPPING ON ALL ORDERS OVER $200

SKU: GW8536MIC4-1T Categories: 4 Channel Security Camera Systems, 4 Channels System, 4K Security Camera System, POE/IP Security System, Security Camera Systems Tags: 4 Channel, 4K POE Camera, 8MP POE Camera, Fixed Lens, Turret, White

GW Security 8 Channel 4K POE/IP AI Smart Security Camera System, 8ch 4K NVR & 4 × 8MP IP 3.6mm Fixed Lens Turret Security Cameras, with Face recognition, Human & Vehicle Detection, Video Surveillance System for 24/7 Recording

The newest generation of security camera systems is here with Commercial 4K resolution! This surveillance system from GW Security will bring a brand-new level of detail to your security monitoring. This system includes our GW5508NPN 4K Network Video Recorder with a built-in POE switch to avoid extra equipment.

For both businesses and homes alike, this NVR security camera system will protect what matters most to you.

8 Channels Means Ample Security

This system can handle up to 8 cameras, providing you with a full range of high-powered coverage. This includes color night vision and a 4k turret security camera system. And with enhanced face recognition security cameras and AI functionality, you can rest easy.

Read on to learn more about how our NVR security camera system is the ideal solution for you.

GW5508NPN-GW8536MIC Specifications

8 Channels

4K NVR can support up to 8 cameras

4 Cameras

4 × 4K Turret IP Camera

100^FTNight Vision

Maximum night vision range

1^TBHard Drive

Expandable up to 24TB

GWCamView App

More System Options Available!

Ultra HD 4K Resolution

Higher Resolution results in more detailed images.

Clarity is crucial for any security camera products. 4K video has 400% more pixels in a frame than standard 1080P (2MP) HD. Additional pixels make the digital zoom more effective, while also providing more details at close distances.

4K imaging also provides the ability to digitally zoom in on details at a greater distance than before. This means no more second guessing what’s in the distance of your frame. Simply zoom in and see it clear as day.

Optional AI Functions

Artificial intelligence camera systems have improved by leaps and bounds. For instance, updated features can access more face recognition security cameras. In addition, the system can speed up the recognition speed, eliminating lag time.

The system has two modes to set them in, either Face Detection Mode or Human/Vehicle Detection Mode.

Face Detection

The camera detects a face in the scene and sends the face snapshot to the NVR. This enables you to easily recognize who bothers your peaceful life!

Upload Image & Detect Through NVR or App

Upload an image of a face you want detected through the app. From here you can identify, blacklist or search through footage to recognize whoever you may be looking for.

Face Recognition Search

Search for the intended face pictures by date, channel, face selection, etc. The whitelist has a green mark, the blacklist has a red mark, and a stranger black mark. There is also a map path track playback function.

▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬ Or ▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬

Human & Vehicle Detection

Human & Vehicle Detection is mutually exclusive with the face recognition function. However, the human shape and car shape can be inspected at the same time. Or you can choose the inspection mode that is more flexible.

Compared with Motion Detection, this feature has a built-in humanoid detection algorithm. When this function is enabled, the humanoid that detects motion will trigger an alarm caused by non-human factors. These might include such things as tree shaking and small animal activities.

easy cable management

Power over Ethernet

With Power over Ethernet (PoE), you only need to connect your Ethernet cable to power your PoE security cameras. Data also travels both ways through an Ethernet cable. Therefore, PoE software not only sends data and commands to devices, but it also collects data.

This wireless security camera system gives you flexibility to install your security cameras almost anywhere you want. This also eliminates the extra worries of keeping them plugged in nearby electrical outlets.

Record Video & Audio

Built-In Mic

Built-in microphone cameras are perfect for recording even the quietest audible disturbance. Place the camera on a terrace, patio, porch, or any indoor room in your home for perfect audio recordings. After all, nothing complements 4K resolution like crisp, clear, high- quality sound.

24/7 Recording

Excellent Day and Night Vision

GW’s high-quality LEDs allow these HD IP cameras to see up to 100ft in complete darkness for 24-hour-a-day protection. GW Cameras use the latest high intensity IR LED technologies for maximum coverage. The image shown is an actual capture from a 4K camera in total darkness.

IR range and image quality can be affected by a variety of factors. For instance, certain surfaces absorb or reflect the light differently during the day than at night. Camera location or position may need to be adjusted to optimize the images. Some ambient lighting provides the best results for night surveillance.

Heavy Duty Metal

IP67 Outdoor Weatherproof

With an IP67 weatherproof rating, our NVR security camera system is reliable against the elements. Neither rain, snow, nor blistering heat will impede the system’s functionality. The high-quality tamper-proof cameras will record in the most extreme weather conditions.

Doing things quickly

Voice Assistant

Voice assistant devices bring a new, hands-free experience to our lives. Our GW Security 55 Systems are compatible with Amazon Alexa and Google Assistant.

With either device connected to our NVR use verbal commands to interact with your security camera system.

You can set nicknames for your devices to make the system simple to communicate with. Additionally, you can assign them to different rooms on your property. This is especially helpful if you have a lot of different smart devices.

You’ll need to use a smartphone or tablet along with a compatible TV to set up your smart home devices. This process is simple and will then allow your devices to work with Amazon Alexa or Google Assistant.

Learn More

GW5508NPN

8 Channel NVR Support

Up to 4K/8MP/5MP/3MP 1536p @ 30fps Realtime each channel

Built-In Ports

NVR built-in 8 PoE ports and 2 USB ports, 2 SATA HDD port (up to 12TB each, total 24TB)

Remote Viewing

Quick Access QR Code Remote Viewing on iPhone, iPad, and Android (w/ included Free app)

Smart Search

Smart search for selected area in the video, and smart playback to improve the efficiency.

VGA & HDMI Support

Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K (3840×2160) resolution.

Computer Access

Remotely Access Using Standard Windows and Mac Browsers.

For more information about how this NVR security camera system can benefit you, reach out to our team. Our professionals are happy to walk you through the ins and outs of these security camera products.

Learn More

H.265 Video Compression

H.265 is the latest video compression standard, which brings extensive possibilities to the HD-IP Camera by addressing the H.264 problem shortage of bandwidth, improving transmission efficiency, and delivering ultra HD image quality. Compared with current H.264, the H.265 can double the data compression ratio, while improving video quality with low bit-rates. This enables IP camera to deliver smooth Superb HD video with low bandwidth, which reduces the network bandwidth and video storage size.

Downloads & Resources

How to add GW55NVR to GWCamView/RXCamView

Desktop Software: VMS Client

GW5508NPN Manual

Additional Accessories Available

GW8536JB Junction Box – Compatible with & GW8536MIC

$38.50

GW8536HB Bracket – Compatible with GW8536MIC

$38.50

GW8536MIC4-1T

Package Includes:

GW5508NPN: 8-Channel H.265 NVR with 1TB Hard Drive
4 x GW8536MIC: 8MP Turret Cameras
2 x GWCAT100: 100ft Cat5e Cables
2 x GWCAT60: 60ft Cat5e Cables
2-Year Warranty & Free Lifetime Tech Support

Cameras	4 Cameras
Resolution	8 Megapixel
Camera Style	Turret
Color	White
Focal-Length	3.6mm Fixed Lens
IR Distance	100ft
Spot Light	No
Lens Type	Fixed
Microphone & Speaker	Built-In Microphone
AI Smart Feature	Vehicle Detection / Human Detection, Face Recognition

18 reviews for 8 Channel NVR Security Camera System with 4 * 8MP IP Turret 3.6mm Fixed Lens Camera, Face Recognition, Human & Vehicle Detection, Built-in Mic, PoE

Rated 5 out of 5
Isaac (verified owner) – February 15, 2021
Installed for a customer to replace existing camera system about 2 weeks ago. Working great so far. Great picture , easy operation. Waiting to pair with a new monitor so we can experience the full effect.
Rated 4 out of 5
Henry (verified owner) – February 16, 2021
Fantastic security camera solution. Ive had it installed for a few months now, and it definitely works well. There is a desktop computer application for downloading videos, a moble phone app for checking the cams from anywhere, and the device itself has a UI you can use with a mouse and hdmi monitor/TV. Easy to install, came with a lot of wire and connectors, and just seems to be high quality.
Rated 5 out of 5
Hayden (verified owner) – February 16, 2021
The product is firmly packed.
Rated 5 out of 5
Charles (verified owner) – February 16, 2021
Good quality.
Rated 4 out of 5
Zakhai (verified owner) – March 8, 2021
I’ve had this product installed for about 3 weeks now. Everything works flawlessly and couldn’t be happened.
Rated 4 out of 5
Zachry (verified owner) – March 19, 2021
So far it has been excellent
Rated 4 out of 5
Kevin (verified owner) – March 23, 2021
High definition picture
Rated 4 out of 5
Matthew (verified owner) – March 31, 2021
Awesome camera system! Clear picture.
Rated 4 out of 5
Paul (verified owner) – March 4, 2022
Simple. Inexpensive. Good.
Rated 4 out of 5
Yohann (verified owner) – March 8, 2022
Very good camera system at a good price.
Rated 4 out of 5
Dylan (verified owner) – March 29, 2022
Best system I’ve ever had… for the price you can’t beat the quality… very easy to install and the learning curve is minimal. With the app I can view from anywhere with a network. Very happy with purchase
Rated 4 out of 5
Charles (verified owner) – June 13, 2022
My experience for the last 4 months with the product is good, Very sensitive for motion detection, need to adjust the settings, Night vision is OK but day color quality with high resolution is very good.
Rated 5 out of 5
Verdun (verified owner) – December 3, 2022
Easy to set up system. Of course you need to run de CAT5 cables, which also provide the power to the cameras but there are sticking templates to make the drilling of the holes to support the cameras easier. Now I can watch my cameras using my cell phone or the HDMI monitor connected to NVR of the system.
Rated 4 out of 5
Phoenix (verified owner) – April 13, 2023
Awesome camera system! Clear picture.
Rated 4 out of 5
Edward (verified owner) – June 8, 2023
Awesome camera system! Clear picture.
Rated 5 out of 5
Zechariah (verified owner) – February 18, 2024
The GW camera quality is amazing! Everything’s so crystal clear. Set up was super easy, well worth the money.
Rated 4 out of 5
John (verified owner) – November 7, 2024
And I noticed the following
Rated 5 out of 5
Owen (verified owner) – November 9, 2024
I like it

Add a Review Cancel reply

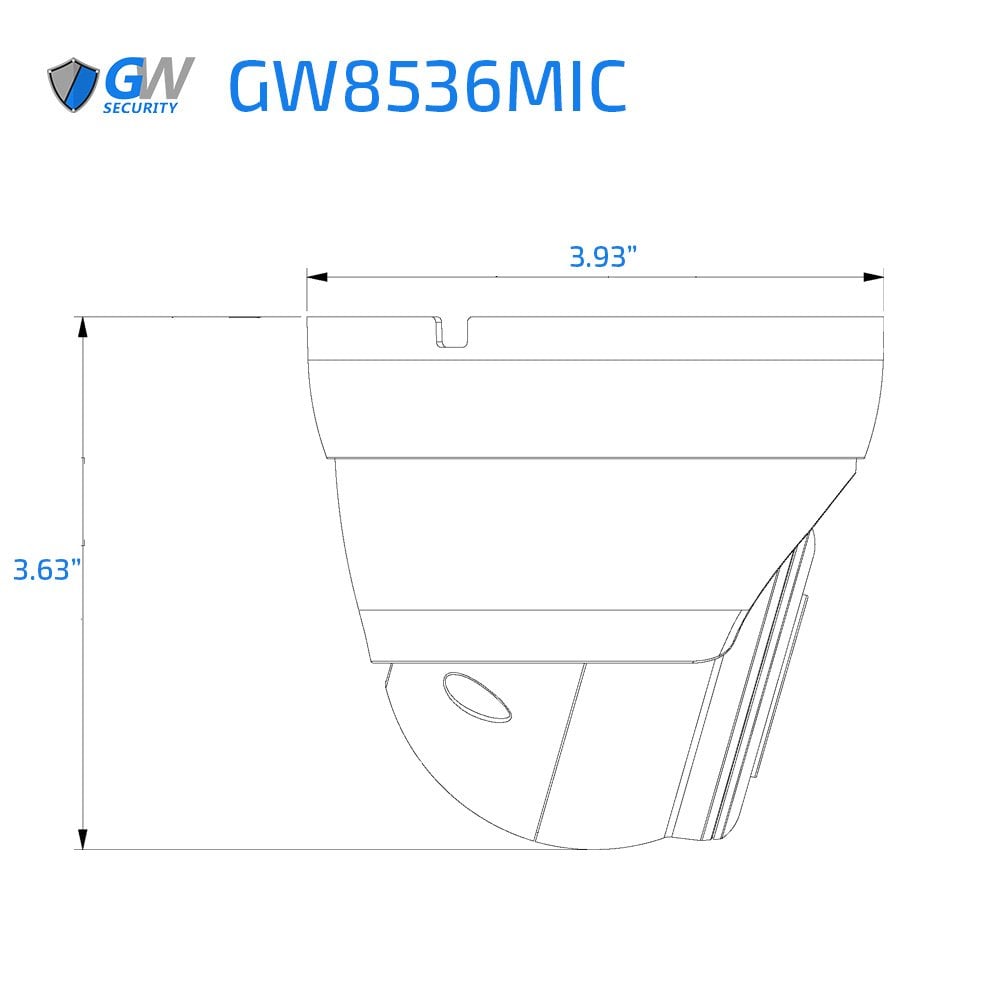

GW8536MIC Specifications

Video
Imaging Device	1/2.7"
Effective Pixels	8MP 3840(H)×2160(V)
Scanning System	Progressive CMOS
Min. Illumination	Color 0.002Lux @(F1.2,AGC ON) ; B/W 0 lux @ IR ON
Framerate	8MP@20fps, 5MP@20fps
Lens Type
Focal Length (Zoom Ratio)	3.6mm
Max. Aperture Ratio	F No. 1.6
Angular Field of View	Horizontal: 91°, Vertical: 46°, Diagonal: 109°
Min. Object Distance	2M
Lens Type	Fixed(M12)
Operational
IR Viewable Length	Up to 30m
Camera Title	On/Off
Day & Night	IR cut filter with auto switch（Day/Night/Auto/Schedule）
Backlight Compensation	Off/On (5 Zone)
Wide Dynamic Range	DWDR
Digital Noise Reduction	3D DNR
Motion Detection	Off/On (8 Level)
Privacy Masking	Off/On (4 Zone, Rectangle)
Gain Control	Auto
White Balance	Auto/Manual
Electronic Shutter Speed	1/5 ~ 1/20000s
Mirror	Flip/Rotation
On-Board Storage	No
Alarm	NA
Audio	Built-In Microphone
Hardware Reset	NA
Smart Feature	PID,LCD,SOD,PD/VD,CC,CD,QD,HM
Network
Ethernet	RJ45(10/100BASE-T)
Video Compression Format	H.265/H.264
Resolution	Main Stream 8MP(3840x2160),5MP(2592x1944,3072x1728), 4MP(2592x1520),3MP(2304x1296),1080P(1920x1080), 960P(1280960),720P(1280x720), Sub Steam* 720P(1280x720),VGA(640x480),QVGA(320x240) Mobile Stream VGA(640x480), QVGA（320x240）
Video Quality Ajustment	8Kbps ~ 16Mbps
Bitrate control method	CBR/VBR
Streaming Capability	Triple-Stream(Main/Sub/Mobile)
Protocol	TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP
Security	IP address filter;complicated password;Authenticated username and password
Streaming Method	Unicast/Multicast
Application Programming Interface	ONVIF( Profile S/G/T)
Environmental
Operating Conditions	-30～+55°C/less than ≤ 95% RH
Storage Conditions	-30～+60°C/less than ≤ 95% RH
Ingress Protection	IP67
Eletrical
Input Voltage / Current	D12V/POE(IEEE802.3af)
Power Consumption（IR OFF）	2W/3W
Power Consumption（IR ON）	4W/5.5W
Mechanical
Material	Metal

GW5508NPN Specifications

Design

2HDD

Video

Resolution

8MP,5MP, 3MP ,2MP(1080P),1.3MP(960P),1.0MP(720P)

Recording Bandwidth

Inputs

128M

out

128M

Performance

Installation wizard

Yes

Live/Playback

Compression

Audio: G.711a Video : H.264/H.265

Frame rate

4K:45fps 4MP:90fps 2MP:180fps

yes

Event

MD(Sensitivity Level 1~8)

Videlo loss

Beep, Email, Push notification to Mobile APP

Playback function

Fast forward / backward (2x, 4x, 8x,16x)

Slow forward (1/2x, 1/4x, 1/8x,1/16x)

Playback

Max 8CH playback

UI/Monitoring

Local

UI5.0

WEB

IE10/11 Safari V12.1 above Firefox V.52 above Google chrome V.57 above Edge V.79 above

Mobile viewer

Rxcamview

Push N/Atification

TUTK/RS

Interface

P/W Reset

Factory Reset : Press 10 seconds

Monitors

VGA

1（1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 ）

HDMI

1（1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 , 2560*1440, 3840*2160/EDID）

Connections

POE

8POE

Ethernet

1 RJ45 100/1000 Base-T

USB

USB2.0*1(front) USB2.0*1+(rear)

Audio out

E-sata

HDD

Software design can support up to 12TB
1/2/3/4/6 T use 48V/1.5A
Use 48V/2A power supply above 6T (Design reserved 2HDD or 1HDD+1ESATA)

Line in

Yes

RS485

yes

Alarm Input/out

8 in /1 out

General

OSD Language

Mechanical design

Dimension (WxDxH)

300X227X53mm

Electrical

Input Voltage/Current

1HDD:DC48V/1.5A 2HDD:DC48V/2A PoE Swith :48V

Power consumption (excluding hard disk)

Environmental

Operating Temperature/Humidity

Temperature : 0°C~+40°C (32°F ~ 104°F) Humidity : Less than 90%RH

Questions and answers of the customers

Can I add an additional camera to it if I use a PoE gigabyte switch? I noticed my screen I use for viewing has 9 spots and I would like to add one more.

QCan I add an additional camera to it if I use a PoE gigabyte switch? I noticed my screen I use fo...... Read more answer now
A
This NVR maximum can support 8 cameras, whatever the camera connect to internal or external port! If you need view 9 cameras, you need to get 16 channel system!

Does this system capable for coaxial cable connection??

QDoes this system capable for coaxial cable connection??answer now
A
No, This is IP system! But you can get this coaxial system!
https://gwsecurityusa.com/product/8-channel-coaxial-security-camera-system-with-4-8mp-analog-turret-2-8-mm-fixed-lens-camera-human-vehicle-detection-built-in-microphone/

How many cables the set of 4 come with

QHow many cables the set of 4 come withanswer now
A
2 x GWCAT100: 100ft Cat5e Cables
2 x GWCAT60: 60ft Cat5e Cables

How many days does the hard drive store using all 4 cameras

QHow many days does the hard drive store using all 4 camerasanswer now
A
For pre-installed 1T HDD, this system can keep up to 7 days records

How much internet upload bandwidth is required per camera?

QHow much internet upload bandwidth is required per camera?answer now
A
Under 4k resolution, need 0.4MB/S

Are these cameras outdoor rated??

QAre these cameras outdoor rated??answer now
A
The weather proof rate is IP66

does face recognition works with this camera in low light?

Qdoes face recognition works with this camera in low light?answer now
A Low light environment will affect accuracy but still can work!
