Network Video Recorder
GW55256NSN
6K Network Video Recorder
Support up to 12MP
Mobile View
256-Channel
ONVIF Support
-50%

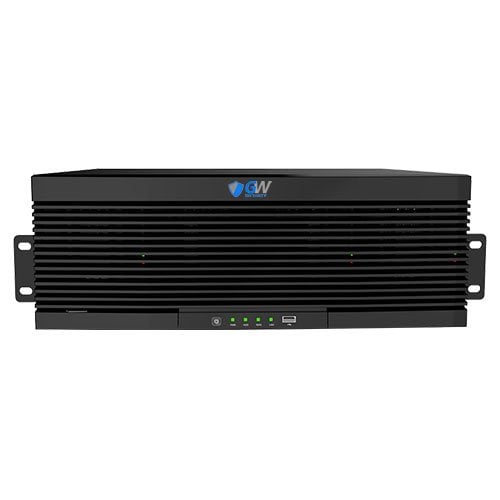

6K 256 Channel Network Video Recorder – GW55 Series
Original price was: $5,598.00.$2,799.00Current price is: $2,799.00.
1-256 Cameras Supported
SUPERIOR PRODUCTS 2 YEAR WARRANTY
30 DAY MONEY BACK GUARANTEE
LIVE USA TECHNICAL SUPPORT
FREE SHIPPING ON ALL ORDERS OVER $200
For home or office security, our 6K 256 Channel Network Video Recorder has everything you need. Including:
- AI Functions
- Facial Recognition & Human/Vehicle Detection
- Free Mobile App
- Up To 288TB Storage
- And more
Explore the features of this video recorder with AI functions and learn why it’s right for you.
More NVR Options
ONVIF Comformance
Our NVRs work with any ONVIF compliant cameras.
Key Features
24/7 Continuous Recording
Continuous recording allows you to keep a close eye on things when you’re away. This security camera system can even deter would-be thieves, thanks to its motion detection.
With the ability to record 24/7 or by setting a schedule, you can ensure your business or home assets are secure.
Supports PoE — Easy Setup & Real Plug and Play
The plug and play security cameras make the setup easy enough for even a beginner. Plug and play security cameras enable you to DIY your security solutions with super easy cabling.
We believe that security setup should be simple. With these security camera products from GW Security, it can be. Our DIY capabilities put us ahead of competitors and will make your life easier.
Local / Remote Access & Control
Security is essential when providing remote access for a user to connect to their network. The same is true for a user trying to connect to a smartphone on the go.
Remote access is designed to simplify your life but shouldn’t jeopardize your security. Fortunately, this artificial security camera system allows for simplicity as well as security.
GWCAMVIEW
Free Security App
See your security camera system on mobile anytime anywhere without any fees. After all, there’s no reason you shouldn’t enjoy all the features that a security camera has to offer. GW Security offers a free app on all its’ systems
There are many benefits of these customized smartphone security camera apps. But one of the greatest is making full use of your security systems without any compatibility issues.
Up to 288 TB Storage
16 HDD Slots (18TB Each)
Enterprise Hard Disk Drives Required
Footage requires storage to maintain, and there’s no way around it. Fortunately, our 6K 256 channel network video recorder was built with that in mind. With this security camera system, you can store enormous quantities of video data at remarkably low cost per GB.
The result is surveillance systems that are sure to impress and provide peace of mind. Even with wireless security camera systems, you can seamlessly accommodate the details. Enjoy the unique image quality and extended archival needs of modern security environments.
From real-time action to reviewing footage from your color night vision security camera, storage is on your side.
256-Channel Live View
GW Security’s 6K 256 channel network video recorder supports the following for up to 256 IP cameras:
- • simultaneous recording
- • live monitoring
- • search
- • system management
This support also includes high-definition formats, because top of the line is standard at GW Security.
Reach out to the professionals to learn more about how 6K 256 Channel Network Video Recorder is right for you.
Compatible With 55 Series Cameras
-40%
HD-IP Security Cameras
GW8536MIC 8MP 4K IP POE 3.6mm Fixed Lens Turret Security Camera, Built-In Mic
Original price was: $299.99.$179.00Current price is: $179.00.
-40%
Fixed Lens Camera
Original price was: $379.50.$227.00Current price is: $227.00.
-38%
Original price was: $349.00.$215.00Current price is: $215.00.
-40%
Original price was: $449.00.$269.00Current price is: $269.00.
-42%
Security Cameras
Original price was: $599.99.$349.00Current price is: $349.00.
-40%
Original price was: $449.00.$269.00Current price is: $269.00.
Downloads & Resources
How to add GW55NVR to GWCamView/RXCamView
Desktop Software: VMS Client
GW55NVR Manual
DIY Setup
Save on installation cost by doing it yourself
| Series | 55 Series NVR |
|---|---|
| Channels | 256 Channels |
2 reviews for 6K 256 Channel Network Video Recorder – GW55 Series
Add a Review
GW55256NSN Specifications
| Model Name | GW55256NSN | ||
| Video | Resolution |
| |
| Recording Bandwidth | Inputs | 1024M | |
| out | 800M | ||
| Performance | |||
| Live/Playback | Compression | Audio: G.711A /G.711U Video : H.264/H.265/H.264+/H.265+ | |
| Frame rate | 4K:240fps 4MP:480fps 2MP:960fps | ||
| Event | MD(Sensitivity Level 1~8) | ||
| Videlo loss | |||
| Beep, Email, Push notification to Mobile APP | |||
| Playback function | Fast forward / backward (2x, 4x, 8x,16x) | ||
| Slow forward (1/2x, 1/4x, 1/8x,1/16x) | |||
| Playback | Max 16CH playback | ||
| RAID | RAID Type | RAID0, RAID1, RAID5, RAID6, RAID10 | |
| Fisheye | Support | ||
| UI/Monitoring | Local | UI5.0 | |
| WEB | IE10/11 Safari V12.1 above Firefox V.52 above Google chrome V.57 above Edge V.79 above | ||
| Mobile viewer | Rxcamview | ||
| AI | Face Detection | ||
| Pedestrian Detection | |||
| Vehicle Detection | |||
| Cross Counting | |||
| Heat Map | |||
| Crowd Density Detection | |||
| Perimeter Intrusion Detection | |||
| Line Crossing Detection | |||
| Queue Legth Detection | |||
| License Plate Detection | |||
| Rare Sound Detection | |||
| Interface | |||
| P/W Reset | YES | ||
| Monitors | HDMI | 3（1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 , 2560*1440, 3840*2160/7680*4320/EDID）Async out *If the output resolution of HDMI 1 is set to 8K, the maximum output resolution of HDMI 3 and 4 will be limited to 1080P, and HDMI 2 will be disabled. | |
| 1（1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 /EDID） Async out | |||
| Ethernet | 2 RJ45 1000 Base-T | ||
| USB | USB2.0*1(front) USB3.0*2(rear) | ||
| Audio out | 1 | ||
| E-sata | 1 | ||
| HDD | 16 SATA HDD, up to 18TB (Enterprise-Class) | ||
| Line in | 1 | ||
| RS232 | 1*RJ45 | ||
| RS485 | 1 | ||
| Alarm Input/out | 16in /4out | ||
| General | |||
| OSD Language | English/French/Spanish/Portuguese/German/Italian/Greek/Danish/Finnish/Russia/Hebrew/Turkish/Bulgarian/Arabic/Korean/Japanese/Thai/Hindi/Romanian/Dutch/Polish | ||
| Mechanical design | Dimension (WxDxH) | 440*460*149mm | |
| Electrical | Input Voltage/Current | ATX 250W | |
| Power consumption (excluding hard disk) | 8W | ||
| Environmental | Operating Temperature/Humidity | Temperature : -10°C~+50°C (14°F ~ 122°F) Humidity : Less than 90%RH | |
Questions and answers of the customers
- Re: GW55256NSN Are all four HDMI's independent video outputs where you can view different camera screens on different HDMI or is it mirrored? Does it have or support face detection/capture (face match database) and license plate detection/capture (ANPR) databases? Do you sell face recognition and LPR cameras that can go with this NVR? Thanks!
- QRe: GW55256NSN Are all four HDMI's independent video outputs where you can view different camera ...... Read more answer nowA
The four HDMIs are independent and can view different camera! And yes, it support face database and license plate database! All 85 and 55 series can work with this system!
If you need best profomence we suggest you can get GW8550RMMIS or GW8571RMMIC!
Does this have "people-follow". Meaning. If I go through playback and somehow select a person, can it follow the person from camera to camera via playback? - QDoes this have "people-follow". Meaning. If I go through playback and somehow select a person, ca...... Read more answer nowA
That function need camera support! Normally we use face recognition to do this function!, you can choose a face and search all your records on all your cameras to find similar face to track people!
All 85 and 55 series camera can do this function with this NVR exclude GW8539DFIP and GW8595DFIP
