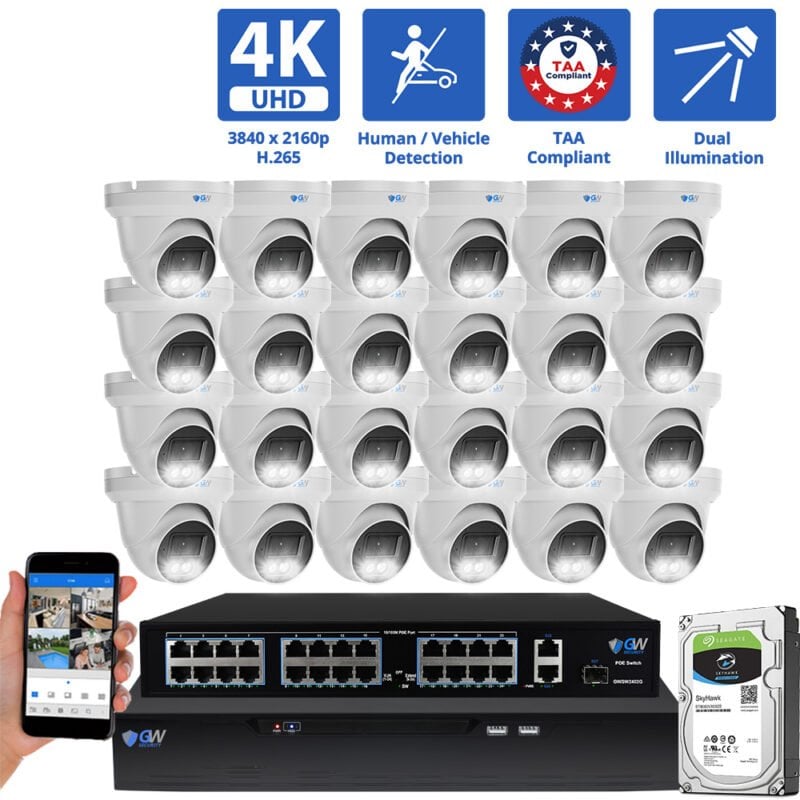

32 Channel NVR Security Camera System with 24 * 8MP IP Turret 2.8mm Fixed Lens Camera, Dual Illumination, Smart AI, Human / Vehicle Detection, Built-In Microphone

Original price was: $6,499.99.Current price is: $3,899.00.

guarantee 2
SUPERIOR PRODUCTS 2 YEAR WARRANTY
calendar
30 DAY MONEY BACK GUARANTEE
chat
LIVE USA TECHNICAL SUPPORT
shipped
FREE SHIPPING ON ALL ORDERS OVER $200
SKU: GW68-8677MIC24-8T Categories: , , , , ,

Our versatile 32-Channel 4K NVR Security Camera System is your all-in-one solution for ultimate protection. Equipped with 24 high-resolution cameras, this system boasts Built-In Microphone, Dual Illumination,  ensuring round-the-clock vigilance. With various AI smart functions, including human and vehicle detection, it’s a powerhouse for various applications.

Storage is a breeze with 8TB onboard, expandable up to a massive 64TB, providing ample space for your video archives. For added convenience, our free camera app allows 24/7 monitoring, offering security at your fingertips. Whether for home, business, or any other setting, trust in the comprehensive security of our NVR system. Upgrade today and safeguard what matters most.

Rest assured, this product meets the rigorous standards of both NDAA and TAA compliance, ensuring it aligns with U.S. federal procurement regulations and supports fair trade practices. Its NDAA and TAA compliance make it an excellent choice for large-scale projects, offering peace of mind and regulatory assurance every step of the way.

24 Cameras

24 × 4K Turret IP Camera

32 Channels

NVR Supports Up To 24 Cameras

No Monthly Fees

Save Money & Protect Privacy

100FT Night Vision

Maximum Night Vision Range

8TB Hard Drive

4 SATA HDD Ports (up to 16TB each, total 64TB)

GW ViewLINK

More System Options Available!

Ultra HD 4K Resolution

nhance your security with Ultra HD 4K Resolution surveillance, a significant improvement over 5-megapixel cameras. With four times the pixels, it offers unparalleled clarity, enabling precise identification and improved digital zoom capabilities for closer inspection. Invest in 4K for superior coverage and peace of mind in safeguarding what matters most.

4kbanner3
AI spotlight

Dual Illuminators Technology

Full-color Camera with Smart Dual Illuminators Technology seamlessly combine infrared (IR) and white light illumination for discreetly capturing color images in night surveillance. Advanced features like AI Human & Vehicle Detection enable precise motion detection, while Perimeter Protection reduces false alarms. The flexibility to adjust illumination settings  makes Smart Dual Illumination cameras ideal for various scenarios, providing efficient and versatile night surveillance solutions.

specific & Accurate

Human & Vehicle Detection

Greatly reduce the number of false motion alarms with AI Cameras. AI cameras not only detect motion, the camera alerts when motion is created by a person or a vehicle. Get quick, relevant and accurate data delivered right to your smartphone via push notifications.

Traditional motion detection often creates vast amounts of false alarms in outdoor settings such as trees shaking, vegetation moving with the wind, and other small animals. Our new AI technology is relevant motion detection, seeing only vehicles and human activity. Sending only notifications that matter most.

easy cable management

Power over Ethernet

With Power over Ethernet (PoE), you only need to connect your Ethernet cable to power your PoE security cameras. Data also travels both ways through an Ethernet cable, PoE software not only sends data and commands to devices, but it also collects data. This gives you flexibility to install your security cameras almost anywhere you want, without the extra worries of keeping them plugged in nearby electrical outlets.

Rain or shine, our cameras are always on duty.

IP66 Weatherproof Rating

Featuring robust IP66 weatherproofing, these cameras are your reliable guardians against the elements. Heavy rain? No problem. Dust and dirt? Can’t touch this. With the highest level of protection, our cameras withstand it all, ensuring your property stays secure in any weather

Don’t let Mother Nature’s moods compromise your safety. Invest in security that’s as tough as the great outdoors. Discover ultimate protection with our IP66-rated weatherproof security cameras today!”

24/7 Reliable Recording:

Reliability is non-negotiable in security. Our NVR provides 24/7 recording, rain or shine, day or night, so you can trust your system to capture every critical moment, no matter when it happens.

GW6832N-V4

Learn More

Crystal-Clear Recording

See every detail with absolute clarity! Our NVR supports 12MP resolution, ensuring that you never miss a single pixel.

Scalability

Expandable storage of up to 64TB, ensuring you have ample space for all your valuable footage.

FREE Mobile App and Remote View

Monitor your property effortlessly, whether you’re at home or halfway around the world.

Intelligent Object Detection

NVR Smart Search goes beyond simple motion detection. It can identify specific objects within the video feed.

H.265 Encoding

This advanced technology maximizes storage space and minimizes bandwidth usage, without compromising on video quality.

PoE Integration

Connect and power your IP cameras directly through the NVR itself.

GW68-8677MIC24-8T

Package Includes:

  • GW6832N-V4: 32-Channel H.265 NVR with 8TB Hard Drive
  • 1 x GWSW2402G: 24-Port PoE Switch
  • 24 x GW68-8677MIC: 8MP Turret Cameras
  • 16 x GWCAT100: 100ft Cat5e Cables
  • 16 x GWCAT60: 60ft Cat5e Cables
  • 2-Year Warranty & Free Lifetime Tech Support
Cameras

24 Cameras
Resolution

8 Megapixel
Camera Style

Turret
Color

White
Focal-Length

2.8mm Fixed Lens
IR Distance

100ft
Lens Type

Fixed
Microphone & Speaker

Built-In Microphone
Spot Light

Yes
AI Smart Feature

Vehicle Detection / Human Detection, Face Recognition

Reviews

There are no reviews yet.

Be the first to review “32 Channel NVR Security Camera System with 24 * 8MP IP Turret 2.8mm Fixed Lens Camera, Dual Illumination, Smart AI, Human / Vehicle Detection, Built-In Microphone”

GW68-8677MIC Specifications

Camera
Image Sensor 1/2.8” Progressive Scan CMOS
Electronic Shutter Auto/Manual, 1/5 ~ 1/20,000s
Min. illumination Color: 0.05 Lux @ (F1.6, AGC ON), 0 Lux with IR on
S/N Ratio 55dB
Day & Night IR cut filter
Illumination Distance IR distance up to 30m (98.4 ft) White light distance up to 30m (98.4 ft)
Illumination On/Off Control Auto/Manual
Pan/Tilt/Rotation  Range Pan: 0˚ ~ 360˚, Tilt: 0˚ ~ 85˚, Rotation: 0˚ ~ 360˚
Lens
Lens Type Fixed focal
Iris Fixed Iris
Focal Length 2.8 mm 4 mm
F Number F2.0 F1.6
Angle of View H: 101.4°, V: 55.3° H: 89.2°, V: 45.4°
Video and Audio
Max. Resolution 3840(H)×2160(V)
Streaming Capability 2 Streams
Main Stream 3840×2160 @20fps, 2592×1944 @25fps, 2592×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720 @ 25/30fps
Sub Stream 704×576, 640×360, 480×360, 352×288 @ 25/30fps
Bit Rate Control CBR/VBR
Bit Rate Main Stream: 512kbps ~ 6144kbps Sub Stream: 128bps ~ 2048kbps
Audio Compression G.711 (64kbps)
Image Adjustment Brightness, Sharpness, Contrast, Saturation
White Balance Auto/Manual
Mirror Support
Exposure Mode Auto/Manual
Day/Night Setting Auto, Day, Night, Timing
Noise Reduction 2D/3D DNR
Image Enhancement HLC, BLC, Defog
Wide Dynamic Range DWDR
Privacy Masking Support
Alarm Event
Motion Detection Support
Intelligent Analysis Intrusion, Line crossing (support the classification and accurate detection of vehicle and human)
Network
Protocols IPv4, RTSP/RTP/RTCP, TCP/UDP,DHCP, DNS, DDNS, UPNP, ICMP, IGMP, NTP, SMTP, 802.1x, SNMP, HTTP/HTTPS, PPPOE
Interface Protocol ONVIF, SDK, (TUYA optional)
Max. User Access 4 Users
Web Viewer <IE11, Chrome, Firefox, Microsoft Edge
Language English, Chinese (Simplified), French, Korean, Polish, Italian, Spanish, German, Hungarian, Russian, Vietnamese, Thai, Danish, Czech, Slovak, Indonesian, Portuguese, Dutch, Hebrew, Arabic
Interface
Network Interface 1 Ethernet (10/100 Base-T) RJ-45 Connector
Microphone Support
Reset Button Support
SD Card Slot Built-in, up to 256GB
Electrical
Power Supply DC12V(-15%~+25%)/POE (IEEE 802.3af)
Power Consumption Max 5.5W
Operating Temperature -25°C ~ 55°C (-13°F ~ 131°F )
Operating Humidity Less than 90% RH
Ingress Protection IP66
Certifications CE/FCC
Casing Metal + Plastic
Dimensions Φ111 × 95mm (Φ4.37 × 3.74 inch)
Net Weight 0.35 kg (0.77 lb)

GW6832N-V4 Specifications

Video Input
IP Camera Input 32 Channel
Incoming Bandwidth 320Mbps
Outgoing Bandwidth 320Mbps
Video Output
HDMI 1 Output 3840×2160, 1920×1080, 1280×1024, 1024×768
HDMI 2 Output 1920×1080, 1280×1024, 1024×768
VGA Output 1920×1080, 1280×1024, 1024×768
Different Source Output Support
Decoding Capacity 1ch 12MP, 4ch 4MP, 9ch 1080P, 16ch D1, 32ch D1
Dual Stream Support
Multi-screen Display 1st Screen: 1/4/8/9/16/32/36 2nd Screen: 1/4/8/9/16
AI Recognition
Face Comparison Real-time captured and display faces comparison results (registrant (name and ID), stranger, channel, similarity)
Multi-objective Real-time captured and display vehicle, human body, non-motor vehicle, license plates image, and faces comparison results (registrant, stranger, channel, similarity)
Smart Search Time, Properties, Pictures, License plate
Trigger Events Buzzer, Alarm push, Alarm prompt, Email, Alarm Out, Compare the result simultaneously, etc.
Recoding
Resolution 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1 etc.
Recording Mode Manual, Schedule (Regular, Continuous), Event
Trigger Events Motion Detection, Video Loss, Alarm in, IVS
Playback and Backup
Sync Playback 16/9/4/1
Search Mode Time /Date, Alarm, Picture grid, Event
Backup Mode USB Device, Network, eSATA
Alarm
General Alarm Motion Detection, Video Loss, Alarm in, Alarm out
Intelligent Analysis (By Camera) Smoking Detection, Smoke and Fire Detection, Fire Spot Detection, Intrusion, Single Line Crossing, Double Line Crossing, Loitering, Wrong-way, Illegal Parking, People Counting, Enter Area, Leave Area, etc.
Abnormal Alarm Disk Alarm, IP Address Conflict, Network Disconnect
Intrusion Detection (By NVR) 4ch, support the accurate detection of human and vehicle
Network
Network Function HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP, 3G/4G, PPPoE
Remote Users 8 users
P2P Support
Interoperability ONVIF, SDK, CGI
Storage
ANR Support
Disk Group Support
RAID RAID 5, RAID 6, RAID 10
Interface
HDD Interface 4 SATA interfaces, up to 16TB capacity for each disk
Network Interface 2 × RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
eSATA 1 eSATA Interface
HDMI 2
VGA 1
Audio In/Out 1/1
Alarm In/Out 16/4
USB Interface Front panel: 2 × USB 2.0, Rear panel: 1 × USB 3.0
RS-485 Interface 1
RS-232 Interface 1
Reset Button On-board reset button
General
Power Supply AC100 ~ 240V
Power Consumption < 15 W (without HDD)
Operating Conditions -10 °C ~ 50 °C (14 °F ~ 122 °F)
Storage Conditions Less than 90% RH
Certifications CE/FCC
Dimensions 440 × 368.3 × 70 mm (17.32 × 14.5 × 2.76 inch)
Net Weight 4.65 kg (10.25 lb) without HDD
