16 Channel NVR Security Camera System with 2 * 5MP IP Bullet 8mm Fixed Lens Camera 10 * 8MP IP Bullet 2.8mm Fixed Lens Camera, Bi-Spectrum, Smart AI, Human / Vehicle Detection

(1 customer review)

Original price was: $6,999.99.Current price is: $4,099.00.

guarantee 2
SUPERIOR PRODUCTS 2 YEAR WARRANTY
calendar
30 DAY MONEY BACK GUARANTEE
chat
LIVE USA TECHNICAL SUPPORT
shipped
FREE SHIPPING ON ALL ORDERS OVER $200
SKU: GW68-5617TMIC2-GW68-8637MIC10-4T Categories: , , , , , ,

Our versatile 16-Channel 4K NVR Security Camera System is your all-in-one solution for ultimate protection. Equipped with 12 high-resolution cameras, this system boasts , Built-In Microphone, and Intelligent Bi-Spectrum Thermal Imaging , ensuring round-the-clock vigilance. With various AI smart functions, including human and vehicle detection, it’s a powerhouse for various applications.

Storage is a breeze with 4TB onboard, expandable up to a massive 24TB, providing ample space for your video archives. For added convenience, our free camera app allows 24/7 monitoring, offering security at your fingertips. Whether for home, business, or any other setting, trust in the comprehensive security of our NVR system. Upgrade today and safeguard what matters most.

Our product meets the requirements set forth by the National Defense Authorization Act for use in government facilities, and all other entities required to maintain NDAA compliance.

12 Cameras

10 × 4K Bullet IP Camera

2 ×  5MP Bullet IP Camera

16 Channels

NVR Supports Up To 16 Cameras

No Monthly Fees

Save Money & Protect Privacy

100FT Night Vision

Maximum Night Vision Range

4TB Hard Drive

2 SATA HDD Ports (up to 12TB each, total 24TB)

GW ViewLINK

Ultra HD 4K Resolution

nhance your security with Ultra HD 4K Resolution surveillance, a significant improvement over 5-megapixel cameras. With four times the pixels, it offers unparalleled clarity, enabling precise identification and improved digital zoom capabilities for closer inspection. Invest in 4K for superior coverage and peace of mind in safeguarding what matters most.

4kbanner3
Smoking & fire detection

Bi-Spectrum Thermal Imaging

With advanced AI technology and dual-spectrum capabilities, these cameras are engineered to detect smoking and fire hazards with unparalleled accuracy, ensuring swift response and prevention of potential disasters.

Equipped with infrared and visible light sensors, our Bi-Spectrum Cameras penetrate through bushes and foliage, providing a clear view even in challenging environments. Whether it’s thick vegetation or dense foliage, our cameras remain vigilant, scanning for any signs of smoke or fire outbreak.

specific & Accurate

Human & Vehicle Detection

Greatly reduce the number of false motion alarms with AI Cameras. AI cameras not only detect motion, the camera alerts when motion is created by a person or a vehicle. Get quick, relevant and accurate data delivered right to your smartphone via push notifications.

Traditional motion detection often creates vast amounts of false alarms in outdoor settings such as trees shaking, vegetation moving with the wind, and other small animals. Our new AI technology is relevant motion detection, seeing only vehicles and human activity. Sending only notifications that matter most.

easy cable management

Power over Ethernet

With Power over Ethernet (PoE), you only need to connect your Ethernet cable to power your PoE security cameras. Data also travels both ways through an Ethernet cable, PoE software not only sends data and commands to devices, but it also collects data. This gives you flexibility to install your security cameras almost anywhere you want, without the extra worries of keeping them plugged in nearby electrical outlets.

24/7 Reliable Recording:

Reliability is non-negotiable in security. Our NVR provides 24/7 recording, rain or shine, day or night, so you can trust your system to capture every critical moment, no matter when it happens.

GW6816NP

Learn More

Crystal-Clear Recording

See every detail with absolute clarity! Our NVR supports 12MP resolution, ensuring that you never miss a single pixel.

Scalability

Expandable storage of up to 24TB, ensuring you have ample space for all your valuable footage.

FREE Mobile App and Remote View

Monitor your property effortlessly, whether you’re at home or halfway around the world.

Intelligent Object Detection

NVR Smart Search goes beyond simple motion detection. It can identify specific objects within the video feed.

H.265 Encoding

This advanced technology maximizes storage space and minimizes bandwidth usage, without compromising on video quality.

PoE Integration

Connect and power your IP cameras directly through the NVR itself.

GW68-5617TMIC2-GW68-8637MIC10-4T

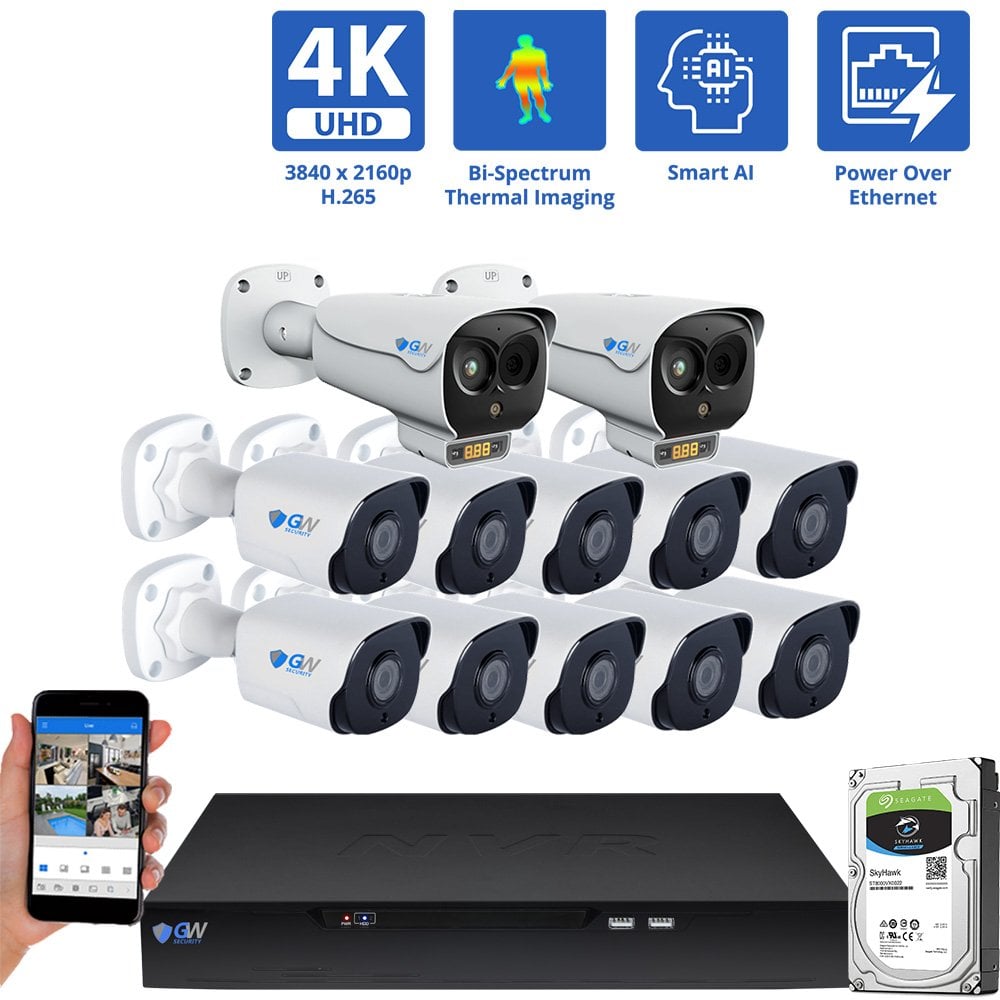

Package Includes:

  • GW6816NP: 16-Channel H.265 NVR with 4TB Hard Drive
  • 2 x GW68-5617TMIC: 5MP Bullet Camera
  • 10 x GW68-8637MIC: 8MP Bullet Cameras
  • 6 x GWCAT100: 100ft Cat5e Cables
  • 6 x GWCAT60: 60ft Cat5e Cables
  • 2-Year Warranty & Free Lifetime Tech Support
Cameras

12 Cameras
Resolution

8 Megapixel
Camera Style

Bullet
Color

White
Focal-Length

2.8mm Fixed Lens, 8mm Fixed Lens
IR Distance

100ft
Lens Type

Fixed
Microphone & Speaker

Built-In Microphone
Spot Light

Yes
AI Smart Feature

Vehicle Detection / Human Detection, Face Recognition

1 review for 16 Channel NVR Security Camera System with 2 * 5MP IP Bullet 8mm Fixed Lens Camera 10 * 8MP IP Bullet 2.8mm Fixed Lens Camera, Bi-Spectrum, Smart AI, Human / Vehicle Detection

  1. Ximenna (verified owner) –

    I like it

Add a review

GW68-5617TMICSpecifications

Thermal Camera
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Resolution 256×192, Image can be scaled up to 704×576
Pixel Pitch 12um
Spectral Range 8~14um
Thermal Sensitivity (NETD) ≤ 50mK
Lens Type Fixed, F1.0
Focus Control Free focus
Focal Length 7 mm
Angle of View H: 24°, V: 18°
Detection Distance (Humans: 1.8×0.5m) 291m
Detection Distance  (Vehicles: 4×1.5m) 894m
Recognition Distance (Human: 1.8×0.5m) 73m
Recognition Distance (Vehicle: 4×1.5m) 224m
Detection Distance (Fire: 0.1×0.1m) 29m
Detection Distance (Fire: 1×1m) 292m
Visible Camera
Image Sensor 1/2.7" CMOS
Effective Resolution 2880(H)×1620(V)
Shutter Speed 1/5 ~ 1/20,000s
Wide Dynamic Range True WDR 120dB
Min. Illumination Color: 0.001Lux @(F1.2, AGC ON) B/W: 0.0003Lux @(F1.2, AGC ON)
S/N Ratio More than 55dB
Focal Length 8mm
Angle of View H: 40°, V: 20°
Illuminator
IR Distance Up to 55m
White Light Strobe light
Video and Audio
Main Stream Visible: 2880×1620, 2560×1440, 2304×1296, 1920×1080, 1280×720 @25/30fps Thermal: D1 (704×576) @25/30fps
Sub Stream Visible: D1, VGA, 640×360, CIF, QVGA @25/30fps Thermal: CIF, 256×192 @25/30fps
Bit Rate Control CBR/VBR
Bit Rate Main Stream: Optical: 100Kbps~12Mbps, Thermal: 100Kbps~3Mbps Sub Stream: Optical: 100Kbps~6Mbps, Thermal: 100Kbps~3Mbps
Region of Interest Off / On (8 Zone, Rectangle)
Smart Encode Support
Audio Compression G.711: 8kbps, RAW_PCM: 16kbps
Image Setting Brightness, Sharpness, Contrast, Saturation
Mirror Support

Pseudo-color Setting White-hot/Black-hot/Rainbow/Ironbow etc. up to 17 modes (Thermal)
DVE Image Enhance Support (Thermal)
Noise Reduction 2D/3D DNR
Privacy Masking Support
Motion Detection Support
Smart Function
Smart Function Temperature measurement,  human detection and vehicle detection
Advanced Intelligence Analysis Smoker detection, Smoke and Flame detection, fire point detection
Intelligent Analysis Intrusion, Single line crossing, Double line crossing, Loitering, Wrong-way, Enter area, Leave area (these 7 function support accurate detection of people/vehicles) , People counting
Sound-light Alarm Support white light flashing and horn warning
Temperature Measurement 3 temperature measurement rule types, 20 rules in total, 1 full screen, 19 others (spot, areas, line).
Temperature Alarm Over temperature alarm, Temperature difference  alarm
Accuracy ±2℃ / ±2%
Response Time ≤ 30ms
Temperature Range -20°C ~ 150°C (-4°F ~ 302°F)
Network
Protocols IPv4/IPv6 ,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP ,802.1x
Interoperability ONVIF
Max. User Access 10 Users
Web Viewer <IE11, Chrome, Firefox, Microsoft Edge
Web Language English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian
Interface
Network Interface 1 Ethernet (10/100 Base-T) RJ-45 Connector
Audio Interface 1ch input, 1ch output
Built-in Microphone Support
Built-in Speaker Support
Alarm Interface 1ch input, 1ch output
RS485 Support
Reset Button Support
SD Card Slot Support, up to 256GB
General
Power Supply DC12V/DC24V/POE (IEEE 802.3af)
Power Consumption Max 10W
Working Temperature -40°C ~ 60°C (-40°F ~ 140°F)
Storage Conditions 0 ~ 90% RH
Certifications CE /FCC
Ingress Protection IP66
Casing  Metal
Dimensions φ140 mm × 117.8 mm (5.51 "×4.64 ")
Net Weight 1.03 Kg (2.27 lb)

GW68-8637MIC Specifications

Camera
Image Sensor 1/2.8” Progressive Scan CMOS
Electronic Shutter Auto/Manual, 1/5 ~ 1/20,000s
Min. illumination Color: 0.05 Lux @ (F1.6, AGC ON), 0 Lux with IR on
S/N Ratio 55dB
Day & Night IR cut filter
IR Distance Up to 30 m (98.4 ft)
IR On/Off Control Auto/Manual
Pan/Tilt/Rotation  Range Pan: 0˚ ~ 360˚, Tilt: 0˚ ~ 90˚, Rotation: 0˚ ~ 360˚
Lens
Lens Type Fixed focal
Iris Fixed Iris
Focal Length 2.8 mm 4 mm
F Number F2.0 F1.6
Angle of View H: 101.4°, V: 55.3° H: 89.2°, V: 45.4°
Video and Audio
Max. Resolution 3840(H)×2160(V)
Streaming Capability 2 Streams
Main Stream 3840×2160 @20fps, 2592×1944 @25fps, 2592×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720 @ 25/30fps
Sub Stream 704×576, 640×360, 480×360, 352×288 @ 25/30fps
Bit Rate Control CBR/VBR
Bit Rate Main Stream: 512kbps ~ 6144kbps Sub Stream: 128bps ~ 2048kbps
Audio Compression G.711 (64kbps)
Image Adjustment Brightness, Sharpness, Contrast, Saturation
White Balance Auto/Manual
Mirror Support
Exposure Mode Auto/Manual
Day/Night Setting Auto, Day, Night, Timing
Noise Reduction 2D/3D DNR
Image Enhancement HLC, BLC, Defog
Wide Dynamic Range DWDR
Privacy Masking Support

Alarm Event
Motion Detection Support
Intelligent Analysis Intrusion, Line crossing (support the classification and accurate detection of vehicle and human)
Network
Protocols IPv4, RTSP/RTP/RTCP, TCP/UDP,DHCP, DNS, DDNS, UPNP, ICMP, IGMP, NTP, SMTP, 802.1x, SNMP, HTTP/HTTPS, PPPOE
Interface Protocol ONVIF, SDK, (TUYA optional)
Max. User Access 4 Users
Web Viewer <IE11, Chrome, Firefox, Microsoft Edge
Language English, Chinese (Simplified), French, Korean, Polish, Italian, Spanish, German, Hungarian, Russian, Vietnamese, Thai, Danish, Czech, Slovak, Indonesian, Portuguese, Dutch, Hebrew, Arabic
Interface
Network Interface 1 Ethernet (10/100 Base-T) RJ-45 Connector
Microphone Support
Reset Button Support
SD Card Slot Built-in, up to 256GB
Electrical
Power Supply DC12V(-15%~+25%)/POE (IEEE 802.3af)
Power Consumption Max 5.5W
Operating Temperature -25°C ~ 55°C (-13°F ~ 131°F )
Operating Humidity Less than 90% RH
Ingress Protection IP66
Certifications CE/FCC
Casing Metal
Dimensions 154.5 × 64 × 64mm (6.08" × 2.52" × 2.52")
Net Weight 0.41 kg (0.9 lb)

GW6816NP Specifications

Video Input
IP Camera Input 16 Channel
Incoming Bandwidth 112 Mbps
Outgoing Bandwidth 112 Mbps
Video Output
HDMI Output 3840×2160, 1920×1080, 1280×1024, 1024×768
VGA Output 1920×1080, 1280×1024, 1024×768
Decoding Capacity 1ch 12MP, 4ch 4MP, 8ch 1080P, 16ch D1@30fps
Dual Stream Support
Multi-screen Display 1/4/9/16
AI Recognition
Face Comparison Real-time captured and display faces comparison results (registrant (name and ID), stranger, channel, similarity)
Multi-objective Real-time captured and display vehicle, human body, non-motor vehicle, license plates image, and faces comparison results (registrant, stranger, channel, similarity)
Smart Search Time, Properties, Pictures, License plate
Trigger Events Buzzer, Alarm push, Alarm prompt, Email, Alarm Out, Compare the result simultaneously, etc.
Recoding
Resolution 12MP, 8MP, 5MP, 4MP, 3MP, 1080P, 720P, D1 etc.
Recording Mode Manual, Schedule (Regular, Continuous), Event
Trigger Events Motion Detection, Video Loss, Alarm in, IVS
Playback and Backup
Sync Playback 16/9/4/1
Search Mode Time /Date, Alarm, Picture grid, Event
Backup Mode USB Device, Network
Alarm
General Alarm Motion Detection, Video Loss, Alarm in, Alarm out
Intelligent Analysis (By Camera) Smoking Detection, Smoke and Fire Detection, Fire Spot Detection, Intrusion, Single Line Crossing, Double Line Crossing, Loitering, Wrong way, Illegal Parking, People Counting, Enter Area, Leave Area, etc.
Abnormal Alarm Disk Alarm, IP Address Conflict, Network Disconnect
Intrusion Detection (By NVR) 4ch, support the accurate detection of human and vehicle
Network
Network Function HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP, 3G/4G, PPPoE
Remote Users 8 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF, SDK, CGI
Interface
SATA 2 SATA ports, up to 12TB for each disk
Network 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet port
PoE 16 ports, IEEE 802.3af/at, Max 128W
HDMI 1
VGA 1
Audio I/O 1/1
Alarm I/O 8/2
USB Front panel: 2 x USB 2.0; Rear panel: 1 x USB 2.0
Reset Button On-board reset button
General
Power Supply AC100 ~ 240V
Power Consumption < 15 W (without HDD)
Operating Conditions -10 °C ~ 50 °C (14 °F ~ 122 °F)
Storage Conditions Less than 90% RH
Certifications CE/FCC
Dimensions 372 × 310.5 × 46.5 mm (16.65 × 12.2 × 2.2 inch)
Net Weight 2.75 kg (6.05 lb) without HDD

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Send me a notification for each new answer.

Related products

-40%
GW 16 Channel 8MP UltraHD 4K (3840×2160) Audio & Video Motorized Zoom Home NVR Security System – 16 x Dome 8 Megapixel 2.8-8mm 3X Optical Zoom Waterproof IP PoE Cameras Built-in Microphone, part of GW Security's 4K security camera system collection
Add to Wishlist

16 Channel Security Camera Systems

16 Channel NVR Security Camera System with 16 * 8MP IP Dome 2.8-8mm Motorized Lens Camera, Human Detection, 3X Motorized Zoom, Built-In Microphone, Vandal-Proof, PoE

Original price was: $4,699.99.Current price is: $2,799.00.
Add to cart
-40%
Add to Wishlist

16 Channel Security Camera Systems

16 Channel NVR Security Camera System with 16 * 8MP IP Bullet 3.6mm Fixed Lens Camera, Face Recognition, Human & Vehicle Detection, Built-in Mic, PoE

Original price was: $3,999.99.Current price is: $2,399.00.
Add to cart
-40%
GW Security 32 Channel 5MP NVR HD 5MP IP PoE Security Camera System with 24 Outdoor/Indoor 2.8-12mm Varifocal Zoom 5.0 Megapixel 1920P Cameras, QR Code Easy Setup, Free Remote View
Add to Wishlist

32 Channel Security Camera Systems

32 Channel NVR Security Camera System with 24 * 5MP IP Bullet 2.8-12mm Varifocal Lens Camera, Human Detection, 4X Optical Zoom, Built-In Microphone, PoE

Original price was: $5,999.99.Current price is: $3,599.00.
Add to cart
-47%
GW Security 4 Channel 5MP 1920P IP PoE Security Camera System, 4K NVR with 2 × Outdoor/Indoor 2.8-12mm Varifocal Zoom 5.0 Megapixel 1920P Cameras, part of GW Security's collection of 5MP HD IP POE Security Cameras
Add to Wishlist

4 Channel Security Camera Systems

8 Channel NVR Security Camera System with 2 * 5MP IP Bullet 2.8-12mm Varifocal Lens Camera, Human Detection, 4X Optical Zoom, Built-In Microphone, PoE

Original price was: $849.99.Current price is: $449.00.
Add to cart
-40%
8 8087ip 42
Add to Wishlist

8 Channel Security Camera Systems

8 Channel NVR Security Camera System with 8 * 8MP IP Dome 2.8-8mm Motorized Lens Camera, Human Detection, 3X Motorized Zoom, Built-In Microphone, Vandal-Proof, PoE

Original price was: $2,248.99.Current price is: $1,349.00.
Add to cart
-40%
32 8087ip 42
Add to Wishlist

32 Channel Security Camera Systems

32 Channel NVR Security Camera System with 32 * 8MP IP Dome 2.8-8mm Motorized Lens Camera, Human Detection, 3X Motorized Zoom, Built-In Microphone, Vandal-Proof, PoE

Original price was: $9,199.99.Current price is: $5,499.00.
Add to cart
-41%
12 985hd
Add to Wishlist

Security Camera Systems

16 Channel Coaxial Security Camera System with 12 * 8MP Analog Turret 3.6mm Fixed Lens Camera

Original price was: $2,199.99.Current price is: $1,299.00.
Add to cart
-40%
Add to Wishlist

4 Channel Security Camera Systems

8 Channel NVR Security Camera System with 4 * 8MP IP Bullet 3.6mm Fixed Lens Camera, Face Recognition, Human & Vehicle Detection, Built-in Mic, PoE

Original price was: $1,249.99.Current price is: $749.00.
Add to cart
16 Channel NVR Security Camera System with 2 * 5MP IP Bullet 8mm Fixed Lens Camera 10 * 8MP IP Bullet 2.8mm Fixed Lens Camera, Bi-Spectrum, Smart AI, Human / Vehicle Detection
