$1,049.00
The newest generation of security camera systems is here. With Commercial 8MP resolution, this surveillance system from GW Security will bring a brand new level of detail to your security monitoring. This system includes our GW7808N 4K Network Video Recorder with built-in POE switch to avoid extra equipment. Whether you are looking to monitor your business or protect your home, this powerful security camera system will help you secure the things that matter most.
GW7808N-8250MMIC Specifications
4K NVR can support up to 8 cameras

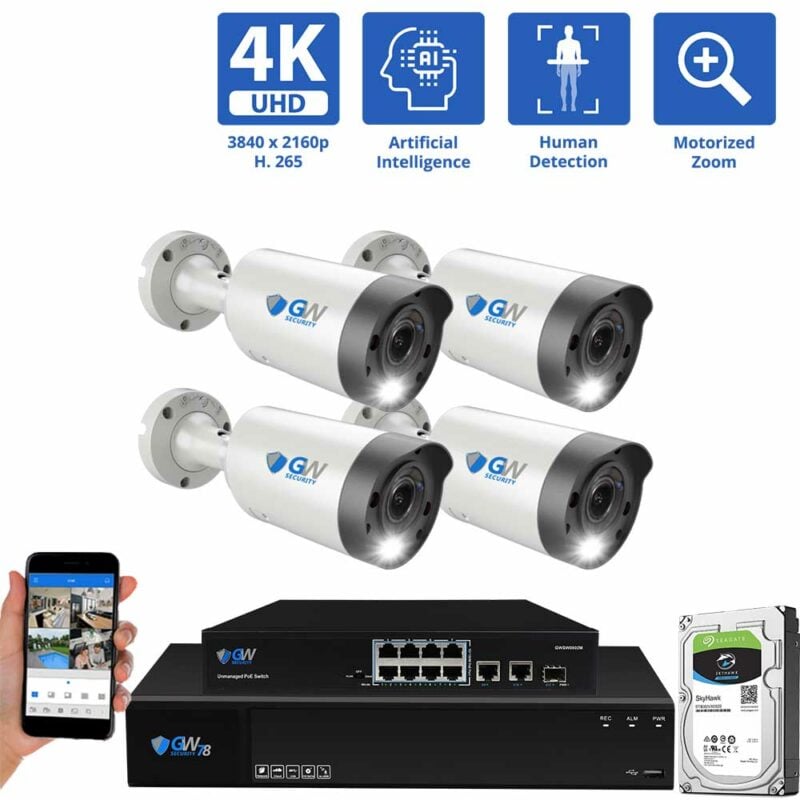

4 × 4k Built-in Mic bullet cameras
Maximum night vision range
Expandable up to 24TB
GWEye Pro
4K video has 400% more pixels in a frame than standard 1080P (2MP) HD. Additional pixels make the digital zoom more effective, providing more details at close distances or the ability to digitally zoom in on details at a greater distance than before.
Color night vision is a camera feature using powerful light sensors to record full color in minimal light. With this improved feature, you get more detail and contrast in night time video recording for the extra security comfort.
Human detection is the latest tech in reducing fake alarms for customers. Human detection and tracking are tasks of computer vision systems for locating and following people in video imagery. They are generally considered the first two processes in a video surveillance pipeline and can feed into higher-level reasoning modules such as action recognition and dynamic scene analysis.
This system has 15 AI Smart Functions include Human Detection, Area Intrusion, Line crossing, Region Entrance/Exiting, Object Missing, Parking Detection, etc. You can customize motion detection zones with 15 AI Smart Function and adjust motion sensibility. You get notifications only when the human or AI smart motion is detected; motion caused by nature is filtered, greatly reducing annoying false alerts.
Built-in microphone cameras are perfect for recording even the quietest audible disturbance. Place the camera on a terrace, patio, porch, or any indoor room in your home for perfect audio recordings with only crisp, clear quality.
Scare intruders away with spotlight IP cameras. These ultra-bright spotlight cameras can sufficiently blind intruders and make it easier for you to identify them in live camera footage. Stop them in their tracks before they cause any damage to your property.
With Power over Ethernet (PoE), you only need to connect your Ethernet cable to power your PoE security cameras. Data also travels both ways through an Ethernet cable, PoE software not only sends data and commands to devices, but it also collects data. This gives you flexibility to install your security cameras almost anywhere you want, without the extra worries of keeping them plugged in nearby electrical outlets.
GW’s high-quality LEDs allow these HD IP cameras to see up to 150ft in complete darkness for 24-hour-a-day protection. GW Cameras use the latest high intensity IR LED technologies for maximum coverage. The image shown is an actual capture from a 8MP camera in total darkness.
IR range and image quality can be affected by surfaces that absorb or reflect the IR light differently when in total darkness. Camera location or position may need to be adjusted to optimize the images. Some ambient lighting provides the best results for night surveillance.
Motorized zoom lenses allow control of the optical zoom lens at the touch of a button from the recorder, PC software, and mobile app. You can control the zoom and focus of the camera when you are watching the camera in live view and adjust the camera’s field of view according to your preferences.
Digital zoom is available when used with our security DVR recorders and is useful for HD security cameras with resolutions of 1080P and higher. Since higher resolution cameras and the better the quality of the digital zoom produce the most detailed images, 4K resolution security footage provides the best quality.
While digital zoom can be done after video has been recorded, optical zoom needs to be executed or set in live video at the actual moment the incident of interest happens.
With an IP67 weatherproof rating, rain, snow or blistering heat will not impede function and the high-quality tamper-proof camera will record in the most extreme weather conditions.
up to 4K/8MP/5MP/3MP 1536p @ 30fps Realtime each channel
2 USB ports, 2 SATA HDD port(up to 12TB each, total 24TB)
Quick Access QR Code Remote Viewing on iPhone, iPad, and Android (w/ included Free app)
Smart search for selected area in the video, and smart playback to improve the efficiency.
Support 1-ch HDMI, 1-ch VGA,HDMI at up 4K(3840×2160) resolution.
Remotely Access Using Standard Windows and Mac Browser.
Downloads & Resources
How to add 78 series NVR to vEye/GWEye
Desktop Software: GW CMS
GW7808N Manual
| Cameras | 4 Cameras |
|---|---|
| Camera Style | Bullet |
| Color | White |
| Focal-Length | 2.7-13.5mm Motorized Lens |
| IR Distance | 150ft |
| Lens Type | Motorized |
| Microphone & Speaker | Built-In Microphone |
| Spot Light | Yes |
| AI Smart Feature | Human Detection, 14+ AI Functions |
| Camera | GW8250MMIC |
| Sensor+DSP | SC8238+SSC338Q |
| Image Sensor | 1/2.7" Progressive scan CMOS Sensor |
| Min. Illumination | 0.01lux(Color), 0lux(IR on) |
| Lens Type&Focal Length | Manual Motorized lens,2.7~13.5 mm |
| FOV | horizontal FOV:109°~34°, vertical FOV:59°~20°, diagonal FOV :129°~40° |
| IR | 4pcs Array LED |
| IR Range | 50m |
| Strobe Light | Support |
| Smart IR | Support |
| Shutter Time | Auto/Manual, 1/3~1/10000s |
| Day/Night | IR cut filter with auto switch |
| Wide Dynamic Range | WDR/DWDR |
| Digital noise reduction | 2D/3D DNR |
| Compression Standard | |
| Video Compression | H.264/H.264+/H.265/H.265+ |
| H.264 Codec profile | Base/Main/High profile |
| H.265 Codec profile | Main profile |
| Video Bit Rate | 11 Kbps~10Mbps |
| Triple Streams | Support |
| Audio Compression | G.711A/G.711U |
| Audio Bit Rate | 64 Kbps |
| Image | |
| Max. Image Resolution | 8MP(3840 × 2160) |
| Frame Rate | 50Hz:15fps 8MP(3840 × 2160) 25fps 5MP(2592 × 1944),25fps 5MP(3072 × 1728) 25fps 4MP(2560 × 1440),25fps 4MP(2304 × 1728) 25fps 3MP(2048 × 1536),25fps 1080P(1920 × 1080) 60Hz:15fps 8MP(3840 × 2160) 30fps 5MP(2592 × 1944),25fps 5MP(3072 × 1728) 30fps 4MP(2560 × 1440),30fps 4MP(2304 × 1728) 30fps 3MP(2048 × 1536),30fps 1080P(1920 × 1080) |
| Sub Stream | 50Hz:25fps 720P(1280 × 720) 25fps D1(704 × 576),25fps CIF(352 × 288) 60Hz:30fps 720P(1280 × 720) 30fps D1(704 × 480),30fps CIF(352 × 240) When the primary stream is 8M@15fps ,the frame rate of the sub-stream is only 15fp s |
| Third Stream | 50Hz:25fps CIF(352 × 288) 60Hz:30fps CIF(352 × 240) When the primary stream is 8M@15fps ,the frame rate of the third-stream is only 15fps |
| Image Setting | Brightness/Contrast/Saturation/Hue/Sharpness |
| BLC | Support |
| HLC | Support |
| ROI | Support |
| Defog | Support |
| Rotate | Support |
| Network | |
| Network Storage | Support |
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP, RTCP,NTP,IGMP,UPnP,SMTP,UPnP-TM,P2P,Bonjour |
| Event | Motion detection (support alarm triggering by specified target types (human and vehicle)) Video Shelter |
| Smart Functions | Line crossing detection, Area intrusion (support alarm triggering by specified target types (human and vehicle)) Unattended Object Object Missing Region Entrance Region Exiting Fast Moving Loitering Detection People Gathering Detection Parking Detection Blurred Detection Scene Change Detection Audio exception Detection Crossing Line Statistics |
| Face Detection | FD and SMDHV&PPHV are mutually exclusive |
| System compatibility | Onvif（Profile S）, CGI |
| Security | User authentication,IP address filtering,Video mask |
| WEB | IE、Edge、Chrome、Firefox |
| Mobile Surveillance | iPhone, iPad,Android devices |
| Interface | |
| Communication interface | 1 RJ45 10M / 100M Ethernet Port |
| On-board storage | up to 128GB |
| Mic | Support |
| Reset button | Support |
| Audio I/O | NA |
| General | |
| Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F) Humidity 95% or less (non-condensing) |
| Power Supply | DC12V ± 10% |
| POE Supply | PoE (802.3af) |
| Power Consumption | MAX. 8W |
| Weather Proof | IP67 |
| Vandalproof | Support |
| Dimensions | ￠ 74.5X218.9mm |
| Weight | 850g |

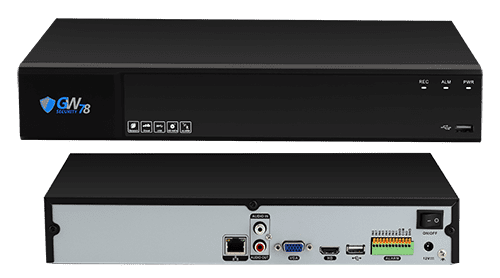

| GW Model | GW7808N |
| Chipset | Hi3536C |
| Video & Audio Input | |
| IP Video Input | 8ch |
| Audio Input | 1CH |
| Video & Audio Output | |
| HDMI | 1ch, resolution:4K(3840×2160)/30Hz,1920×1080/60Hz,1440×900/60Hz,1280×1024/60Hz, 1280×720/60Hz,1024×768/60Hz |
| VGA | 1ch, resolution: 1920×1080/60Hz,1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| Audio Output | 1CH |
| Recording | |
| Compression | H.265+/H.265 /H.264+/H.264 |
| Resolution | 8MP / 5MP /4MP / 3MP /1080P /720P /D1/CIF /QCIF |
| Bit Rate | 64Kbps~10Mbps |
| Playback & Backup | |
| Playback Mode | Smart/ Normal/ Time Division/ Label/ Event/ Picture/ Log Playback |
| Decoding Capability | 4CH@1080P |
| Synchronous Playback | 4CH |
| Backup Mode | USB Device/Network |
| Advanced Features | |
| Smart Detection | Area Intrusion, Line crossing, Region Entrance, Region Exiting, Fast Moving, Object Missing, Unattended Object, Loitering Detection, Parking Detection, Face Detection, People Gathering Detection, Blurred Detection, Scene Change Detection, Audio Exception Detection,Crossing Line Statistics, Human Detection |
| Smart Playback | Human Detection/Face Detection/Line Crossing/Area Intrusion/Motion Detection |
| Cloud Storage | Support |
| Cloud Upgrade | Support |
| Network | |
| Ethernet | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, IP Filter, DDNS, FTP, P2P, ONVIF |
| Smart Phone | IOS(iPhone, iPad), Android(Phone, Pad) |
| Incoming Bandwidth | 80Mbps |
| Outgoing Bandwidth | 80Mbps |
| Hard Disk | |
| SATA | 2 SATA interface |
| Capacity | Up to 12TB capacity for each HDD |
| External Interface | |
| USB Interface | Front panel: 1 × USB 2.0 Rear panel: 1 × USB 2.0 |
| Alarm In | 4ch |
| Alarm Out | 1ch |
| General | |
| Power Supply | DC48V 2A |
| MainBoard Maximum Power Consumption | 10W |
| Theoretical Maximum Power Consumption | 96W |
| Working Environment | -10°C~+55°C / 10%~90%RH |
| Dimension (W×D×H) | 326 x 243 x 52 mm |
| Weight | ≤1.5Kg |
This camera only have spotlight but no Build-in Speaker, so camera cannot have audible alarm!
So, we suggest you can thing this product! This product have spot light, red and blue light and built-in Microphone and Speaker!
