GWPOE-EX2001W POE Extender
Original price was: $181.99.$108.99Current price is: $108.99.
Specifications:
| No. of channel | 1(PoE IN) into 1(PoE OUT) |
| Pass Through Data Rate | 10/100/1000 Mbps half/full duplex |
| Power over Ethernet input | Pin Assignment and Polarity:
Both 1/2 (-), 3/6 (+) and 7/8 (-), 4/5 (+) |
| Power over Ethernet Output | Pin Assignment and Polarity:
1/2 (+), 3/6 (-) Output Power: up to 22W |
| Connector | Shielded RJ-45, EIA 568A and 568B |
| Network cable | Outdoor type Shielded category 5 (or higher） |
| Dimension | 185mm x 45mm x 45mm |
| Mounting | Wall of shelf |
| Environment | Indoor or outdoor |
| Environmental Condition | Operating Ambient Temperature:-25 to 55℃
Operating Humidity: Maximum 90%, Non-condensing Storage Temperature:-30 to 70℃ Storage Humidity: Maximum 95%, Non-condensing |
| Regulatory Compliance | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
5 reviews for GWPOE-EX2001W POE Extender
Add a Review
Questions and answers of the customers
-
how many extenders per cable of 1000ft are required
-
A
The Maximum Poe extenders can be use is 2; so total only can run around 900ft cable!
Hi, I'm researching cameras for outdoor. My concern is neighbor signal squashing with 5G on my current 10 simple cellular plug and play cameras harrassment by 5 HOA homes Hate crime. Overtake my cameras so there is no signal on my 2.4G cameras with 5G signal so it's sounds like ocean or static fo loud then no picture with vehicles parked near my home. Then they take my water for landscaping and my dripline for water and hook up to their property. 4 years of pellet gun shooting egging bb gun shooting. Have videos but FBI wants photos I have 1500videos not photos. I think I need hardwired not plug and play my question is can they have or disable hard wired cameras?
-
Q Hi, I'm researching cameras for outdoor. My concern is neighbor signal squashing with 5G on my cu...... Read more answer nowA
Normally hardwired security camera system won be disable unless they cut the cable!
Do I have to purchase 1 extender for each camera that is going to be over the 300+ limit?
-
Q Do I have to purchase 1 extender for each camera that is going to be over the 300+ limit? answer nowA
You can use 1 switch to connect extender and then the other camera connect to this switch! Otherwise, you need to purchase extenders for each camera that is going to be over the 300+ limit!

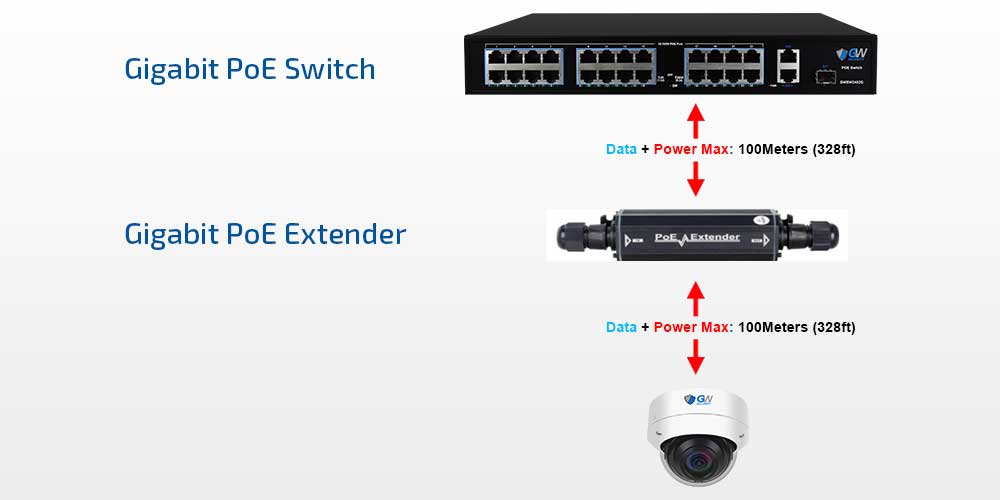

Can multiple devices be used to create longer runs? If so, what is the maximum number of devices in a single run?
-
Q Can multiple devices be used to create longer runs? If so, what is the maximum number of devices ...... Read more answer nowA
Yes, you can! every extender can support 325ft for each side!
What is the power consumption on this device?
-
A
maximum is around 22W
I can I bury this extender? I am needing to add it to outdoor CAT6 cable that is currently buried?
-
Q I can I bury this extender? I am needing to add it to outdoor CAT6 cable that is currently buried? answer nowA We suggest do not bury any pow extender!
