Network Video Recorder
GW4016XVR-1
4K Digital Video Recorder
Support up to 4K
Mobile View
16-Channel
-42%

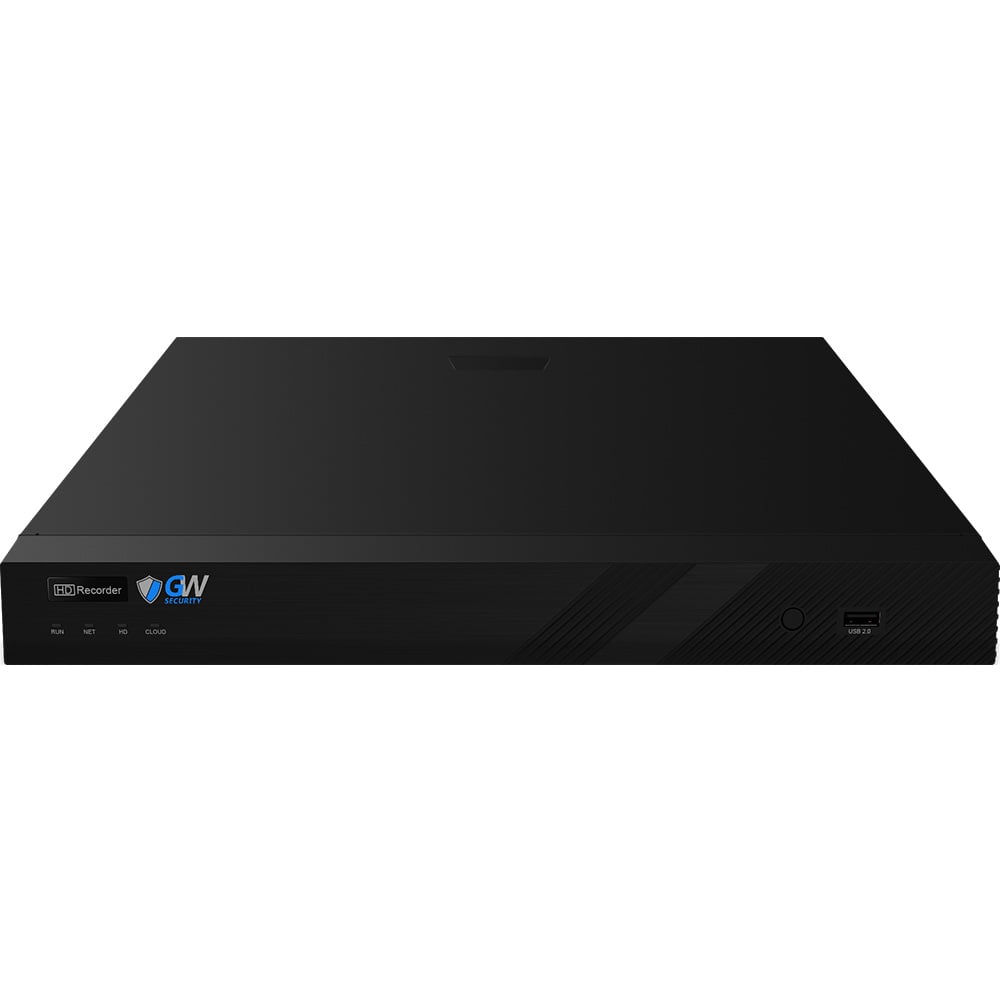

GW4016XVR-1 16-Channel 8MP 4K Hybrid XVR with Smart AI & HDMI Output
Price range: $550.00 through $950.00
Select your hard drive size below.
(NVRs include none by default).
SUPERIOR PRODUCTS
2 YEAR WARRANTY
30 DAY MONEY BACK
GUARANTEE
LIVE USA
TECHNICAL SUPPORT
FREE SHIPPING
ON ALL ORDERS OVER $200
Key Features
24/7 Continuous Recording
Keep a close eye on things when you’re away or even deter would-be thieves with a security camera system that records 24/7, on schedule, or on motion detection to ensure your business or home assets are secure.
Local / Remote Access & Control
Security is essential when providing remote access for a user to connect to their network, or for a user to connect to his smartphone on the go.
Guard Viewer
Free Security App
See your security camera system on mobile anytime anywhere without any fees, and enjoy all the features that a security camera should have. GW Security offers a free app on all its’ systems, The greatest benefit of these customized smartphone security camera apps is that you can make full use of your security systems without any compatibility issues
Up to 24 TB Storage
2 HDD Slots (12TB Each)
Purposely-built to store enormous quantities of video data at remarkably low cost per GB. The result is surveillance systems that can seamlessly accommodate the unique image quality and extended archival needs of modern security environments.
16-Channel Live View
Supports simultaneous recording, live monitoring, search and system management for up to 8 IP cameras including high definition formats with easy to use clients
DIY Setup
Save on installation cost by doing it yourself
| Channels | 16 Channel |
|---|---|
| Series | 42 Series NVR |
1 review for GW4016XVR-1 16-Channel 8MP 4K Hybrid XVR with Smart AI & HDMI Output
Add a Review
| Model | GW-4016XVR-1 |
| Video/Audio Input | |
| IP Video Input | 16‑ch |
| Analog Video Input | 16‑ch, BNC |
| Max IP Video Input | 32‑ch |
| Supported Analog Camera Types | Support AHD input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support TVI input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVI input: 8MP@15fps 5MP@25fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input |
| BNC Audio Input | 16‑ch, channel audio |
| RCA Audio Input | 4‑ch |
| Video/Audio Output | |
| HDMI Output | HDMI: 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA Output | VGA: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| BNC Video Output | 1‑ch |
| RCA Audio Output | 1‑ch |
| Live View Display | HDMI/VGA: 1/4/6/8/9/25/32 |
| Encoding/Decoding | |
| Recording Resolution | 8MP/5MP/4MP/1080P/720P/D1 |
| Recording Frame Rate | Main stream: 8MP@8fps Sub stream: D1@8fps Main stream: 5MP@12fps Sub stream: D1@12fps Main stream: 4MP@15fps Sub stream: D1@15fps Main stream: 1080P@25fps Sub stream: D1@25fps Main stream: 720P@30fps Sub stream: D1@30fps |
| Audio Sample Rate | 8 kHz, 16 bit per channel |
| Audio Bit Rate | 64 Kbps per channel |
| Decoding Capability | Analog: 8 x 8MP@8, 8 x 5MP@12, 8 x 4MP@15, 8 x 1080P@25, 16 x 720@30 IP: 2 x 8MP@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30 |
| Coaxial Cable | |
| Audio over Coaxial Cable(Form) | 16‑ch, One‑way Audio(TVI) |
| Two‑way Audio | |
| Two‑way Audio | 1‑ch, RCA (Using the audio input and output) |
| Analog Snapshot | |
| FTP/Schedule/Event Snapshot | Schedule/FTP/Event snapshot:16‑ch snapshot, up to 704*576 resolution |
| Network | |
| Incoming Bandwidth | 80Mbps (Up to 112Mbps after all analog channel conversion) |
| Outgoing Bandwidth | 160Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP |
| Browser(Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
| Smart | |
| Analog Smart by XVR | SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Face Detection, Ultra Motion Detection (UMD) |
| IP Smart by IPC | Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Defocus Detection, Scene Change Detection, Object Removed, Object Left Behind, Auto Tracking |
| VCA Search | Face Search, Behavior Search |
| Smart Functions by XVR | 16‑ch (UMD), 8‑ch (SIP), 2‑ch (Face Detection) |
| Alarm | |
| General Alarm | Motion |
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| GUI Language | |
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| Hard Disk | |
| SATA | 2 SATA interfaces |
| Capacity | Up to 12 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| External Interface | |
| Network Interface | 1 RJ45 10 M/100 M/1000 M self‑adaptive Ethernet Interface |
| USB | Rear panel: 1 × USB3.0, Front panel: 1 × USB2.0 |
| RS485 | 1 |
| RS232 | N/A |
| Alarm In | 8‑ch |
| Alarm Out | 4‑ch |
| Power Supply | DC 12 V/5 A |
| Working Environment | |
| Working Temperature | ‑10 ℃ to 55 ℃ (14 ℉ to 131 ℉ ) |
| Working Humidity | ≤ 90% RH (non‑condensing) |
| Power Consumption (without HDD) | ≤ 38W |
| Dimensions | |
| Weight (without HDD) | ≤2.3 Kg ( 5.07lb ) |
| Dimensions | 380mm × 326mm × 53mm (15.0" × 12.8"×2.1") |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 50130 |
| FCC | Part15 Subpart B |
Questions and answers of the customers
There are no questions yet. Be the first to ask a question about this product.
Related products
-40%
Security Camera Recorders
GW4032XVR-1 32-Channel 8MP 4K Hybrid XVR with Smart AI & HDMI Output
Price range: $599.00 through $999.00
This product has multiple variants. The options may be chosen on the product page
-40%
Security Camera Recorders
GW4008XVR-1 8-Channel 8MP 4K Hybrid XVR with Smart AI & HDMI Output
Price range: $299.00 through $699.00
This product has multiple variants. The options may be chosen on the product page
Anthony Ramirez (verified owner) –
I recently set up the GW4016XVR-1 hybrid XVR, and it’s fantastic. The 8MP 4K resolution produces crisp, detailed video, and the smart AI features make detecting people and vehicles much easier. HDMI output delivers clear, real-time footage on my monitor without any lag. It’s a reliable, professional-grade XVR that handles both IP and analog cameras effortlessly.
