$1,799.00

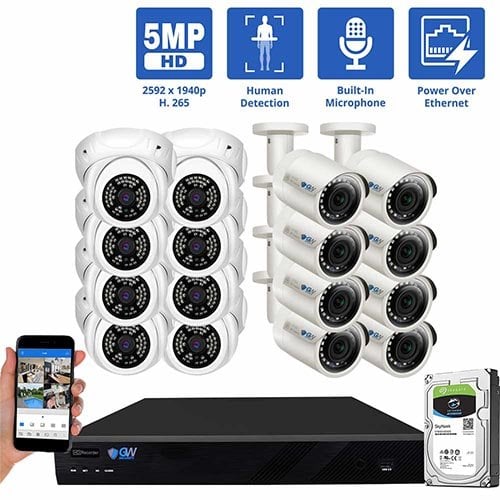

The newest generation of security camera systems is here. With Commercial 5MP resolution, this surveillance system from GW Security will bring a brand new level of detail to your security monitoring. This system includes our GW4216EPA 4K Network Video Recorder with built-in POE switch to avoid extra equipment. Whether you are looking to monitor your business or protect your home, this powerful security camera system will help you secure the things that matter most.
GW4216EPA-GW5091IP-GW5037IP Specifications
4K NVR can support up to 16 cameras
8 × 5MP fixed turret IP cameras
8 x 5MP fixed bullet IP cameras
Maximum night vision range
Expandable up to 20TB
GWEye App
5MP video has 100% more pixels in a frame than standard 1080P (2MP) HD. Additional pixels make the digital zoom more effective, providing more details at close distances or the ability to digitally zoom in on details at a greater distance than before.
Human detection is the latest tech in reducing fake alarms for customers. Human detection and tracking are tasks of computer vision systems for locating and following people in video imagery. They are generally considered the first two processes in a video surveillance pipeline and can feed into higher-level reasoning modules such as action recognition and dynamic scene analysis.
Built-in microphone cameras are perfect for recording even the quietest audible disturbance. Place the camera on a terrace, patio, porch, or any indoor room in your home for perfect audio recordings with only crisp, clear quality.
GW’s high-quality LEDs allow these HD IP cameras to see up to 100ft in complete darkness for 24-hour-a-day protection. GW Cameras use the latest high intensity IR LED technologies for maximum coverage. The image shown is an actual capture from a 5MP camera in total darkness.
IR range and image quality can be affected by surfaces that absorb or reflect the IR light differently when in total darkness. Camera location or position may need to be adjusted to optimize the images. Some ambient lighting provides the best results for night surveillance.
An IP66-rated security camera has a rugged design and durable construction that’s rated for general outdoor use. An IP66-rated camera offers excellent performance even in harsh conditions such as: Dust storms, Wind, rain, sleet, even blowing snow. What performance specs can you count on from an IP66 standardized rating? You can count on an IP66 to provide the following:
Level 6 Dust Protection: The highest level of dust protection, with no intrusion of dust whatsoever permitted.
Level 6 Water Protection: The third-highest level of water protection, impervious to precipitation or hose-directed water streams, blowing snow and sleet.
up to 4K/8MP/5MP/3MP 1536p @ 30fps Realtime each channel
NVR built-in 16 PoE ports and 2 USB ports, 2 SATA HDD port(up to 10TB each, total 20TB)
Quick Access QR Code Remote Viewing on iPhone, iPad, and Android (w/ included Free app)
Smart search for selected area in the video, and smart playback to improve the efficiency.
Supports VGA and HDMI cables.
Remotely Access Using Standard Windows and Mac Browser.
Downloads & Resources
How to add 41/42 series NVR to GWView
Desktop Software: GW Station
GW4216EPA Manual
$38.50
$38.50
| Cameras | 16 Cameras |
|---|---|
| Resolution | 5 Megapixel |
| Camera Style | Bullet, Turret |
| Color | White |
| Focal-Length | 2.8mm Fixed Lens |
| IR Distance | 100ft |
| Microphone & Speaker | Built-In Microphone |
| Spot Light | No |
| Lens Type | Fixed |
| AI Smart Feature | Human Detection |
| Camera | |
| Image Sensor | 1/2.8" 5MP IMX335 CMOS |
| Effective Pixels | 2592(H)×1944 (V) |
| Electronic Shutter | AUTO, 1/25s ~ 1/100000s |
| Min. Illumination | 0.01Lux@F1.2(AGC ON), 0Lux IR on |
| Day/Night | Auto/Color/(B/W)/Timing |
| WDR | Digital WDR |
| White Balance | Auto/Manual |
| AGC/BLC/HLC | Support |
| DNR | 2D/3D DNR |
| Other | Multi-lines OSD, Motion Detection, Privacy Mask, Mirror |
| Encode | |
| Video Standard | H.264/H.265 |
| Video Resolution | Main Stream:15fps@5MP(2592x1944),25fps@4MP/3MP,30fps@1080P/720P Sub Stream: D1/VGA(640x480)/360P/QVGA@30fps |
| Video Bitrates | 32Kbps - 8Mbps, VBR/CBR |
| Audio Standard | G.711-u/G.711-a |
| OSD Overlay | Title and Time overlay |
| IR Led | |
| IR Led | 24 pcs SMD array IR Led |
| IR Distance | 20-30 M |
| Lens | |
| Focal length | 2.8mm fixed lens |
| Optional Function | |
| PoE | |
| Network Services | |
| Protocol | HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc. |
| P2P | Yes |
| Web | IE , Firefox (32bit esr), etc. |
| Media | CMS, Android, IOS |
| ONVIF | 17.06 compatible |
| General | |
| Network Port | 1-RJ45, 100Mbps, POE optional |
| Power Supply | 12 VDC ± 10% |
| Power Consumption | < 8 W |
| Operating Temp. | -30℃-(+60)℃, 10%-90%RH |
| Camera | |
| Image Sensor | 1/2.8" 5MP IMX335 CMOS |
| Effective Pixels | 2592(H)×1944 (V) |
| Electronic Shutter | AUTO, 1/25s ~ 1/100000s |
| Min. Illumination | 0.01Lux@F1.2(AGC ON), 0Lux IR on |
| Day/Night | Auto/Color/(B/W)/Timing |
| WDR | Digital WDR |
| White Balance | Auto/Manual |
| AGC/BLC/HLC | Support |
| DNR | 2D/3D DNR |
| Other | Multi-lines OSD, Motion Detection, Privacy Mask, Mirror |
| Encode | |
| Video Standard | H.264/H.265 |
| Video Resolution | Main Stream:15fps@5MP(2592x1944),25fps@4MP/3MP,30fps@1080P/720P Sub Stream: D1/VGA(640x480)/360P/QVGA@30fps |
| Video Bitrates | 32Kbps - 8Mbps, VBR/CBR |
| Audio Standard | G.711-u/G.711-a |
| OSD Overlay | Title and Time overlay |
| IR Led | |
| IR Led | 18 pcs SMD array IR Led |
| IR Distance | 20-30 M |
| Lens | |
| Focal length | 2.8mm fixed lens |
| Optional Function | |
| PoE | |
| Network Services | |
| Protocol | HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc. |
| P2P | Yes |
| Web | IE , Firefox (32bit esr), etc. |
| Media | CMS, Android, IOS |
| ONVIF | 17.06 compatible |
| General | |
| Network Port | 1-RJ45, 100Mbps, POE optional |
| Power Supply | 12 VDC ± 10% |
| Power Consumption | < 8 W |
| Operating Temp. | -30℃-(+60)℃, 10%-90%RH |
| Model | GW4216EPA |
| Video/Audio Input | |
| IP Video Input | 16-ch |
| Two-way Audio Input | 1-ch, RCA |
| Network | |
| Incoming Bandwidth | 112Mbps |
| Outgoing Bandwidth | 96Mbps |
| Remote Users | 128 |
| Protocols | ,P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output | |
| HDMI/VGA Output | VGA: 1024X768@60,1280X720@60,1280X1024@60,1920X1080@50,1920X1080@60 HDMI: 4k(3840x2160@30),4k(3840x2160@60),1024X768@60,1280X720@60,1280X1024@60, 1920X1080@50, 1920X1080@60 |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | 16-ch |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 |
| Decoding | |
| Decoding format | Ultra 265, H.265, H.264 |
| Live view/Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/960H/D1/2CIF/CIF |
| Capability | 1 x 4K@30, 2 x 4MP@30, 3 x 3MP@25, 4 x 1080P@30, 8 x 720P@30,16 x D1 |
| Hard Disk | |
| SATA | 2 SATA interfaces |
| Capacity | Up to 10TB for each HDD |
| eSATA | NO |
| External Interface | |
| Network Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces |
| USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB2.0 |
| Alarm In | 4-ch |
| Alarm Out | 1-ch |
| POE | |
| Interface | 16 independent 100Mbps PoE network interfaces |
| Max Power | Max 30W for single port Max 240W in total ( 15W for each ) |
| Supported Standard | IEEE 802.3af/at |
| General | |
| Power Supply | 100~240 VAC Power Consumption: ≤ 9 W(without HDD) |
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 380mm ×315mm × 49.1mm(15.0" × 12.4" ×1.9" ) |
| Weight (without HDD) | ≤2.4kg (5.29 lb) |
