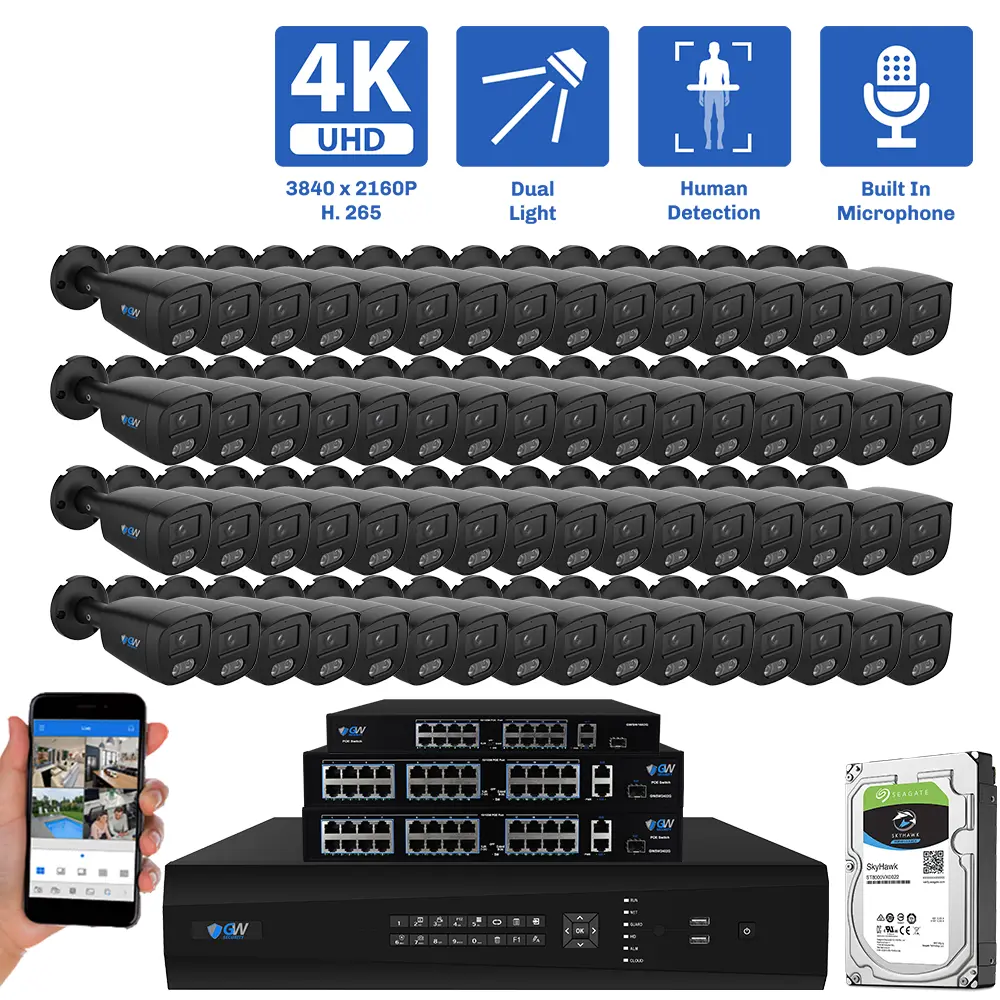

64-Channel NVR Security Camera System with 64* 8MP IP POE 2.8mm Fixed Lens Black Bullet Security Cameras, Built-in Microphone, Human Detection, Dual-Light
64-Channel NVR Security Camera System with 64* 8MP IP POE 2.8mm Fixed Lens Black Bullet Security Cameras, Built-in Microphone, Human Detection, Dual-Light - Image 2
GWSW1602G Front
GWSW2402G Front
64-Channel NVR Security Camera System with 64* 8MP IP POE 2.8mm Fixed Lens Black Bullet Security Cameras, Built-in Microphone, Human Detection, Dual-Light
64-Channel NVR Security Camera System with 64* 8MP IP POE 2.8mm Fixed Lens Black Bullet Security Cameras, Built-in Microphone, Human Detection, Dual-Light - Image 2
GWSW1602G Front
GWSW2402G Front

64-Channel NVR Security Camera System with 64* 8MP IP POE 2.8mm Fixed Lens Black Bullet Security Cameras, Built-in Microphone, Human Detection, Dual-Light

(4 customer reviews)

Original price was: $13,699.99.Current price is: $8,249.00.

Model # GW832501M64-16T
guarantee 2
SUPERIOR PRODUCTS 2 YEAR WARRANTY
calendar
30 DAY MONEY BACK GUARANTEE
chat
LIVE USA TECHNICAL SUPPORT
shipped
FREE SHIPPING ON ALL ORDERS OVER $200
SKU: GW832501M64-16T Categories: , , , ,

This Security Camera System is designed to deliver comprehensive protection in one powerful package. It includes 64 8-megapixel bullet cameras and a versatile 64-Channel 4K NVR that lets you record footage locally with no monthly fees. With built-in microphones and night vision capabilities, these cameras ensure clear audio and video monitoring day and night.

Storage is a breeze with 2 x 8TB onboard, expandable up to a massive 80TB, providing ample space for your video archives. For added convenience, our free camera app allows 24/7 monitoring, putting security at your fingertips. Whether for home, business, or any other setting, trust in the comprehensive security of our NVR system.

Upgrade today and safeguard what matters most!

Our product meets the requirements set forth by the National Defense Authorization Act for use in government facilities, and all other entities required to maintain NDAA compliance.

64 Cameras

64 × 8MP Bullet IP Camera

64 Channels

4k NVR can support up to 64 cameras

No Monthly Fees

Save Money & Protect Privacy

130FT Night Vision

Maximum night vision range

2 x 8TB Hard Drive

Expandable up to 80TB

gwview

GW View App

More System Options Available!

4 Cameras
6 Cameras

Ultra HD 4K Resolution

Higher Resolution results in more detailed images.

4K video has 400% more pixels in a frame than standard 1080P (2MP) HD. Additional pixels make the digital zoom more effective, providing more details at close distances or the ability to digitally zoom in on details at a greater distance than before. than before.

4kbanner3
specific & Accurate

Motion Detection with Human/Vehicle Filter

This camera’s motion detection software is equipped with a human and vehicle filter to minimize false alerts triggered by animals, swaying vegetation, or other environmental factors. The cameras are designed to only send alerts when they detect motion from sources resembling humans or vehicles, ensuring more relevant notifications.

By enabling this filter, you’ll receive motion alerts that matter, saving you time and reducing distractions caused by non-critical movement.

easy cable management

Power over Ethernet

With Power over Ethernet (PoE), you only need to connect your Ethernet cable to power your PoE security cameras. Data also travels both ways through an Ethernet cable, PoE software not only sends data and commands to devices, but it also collects data. This gives you flexibility to install your security cameras almost anywhere you want, without the extra worries of keeping them plugged in nearby electrical outlets.

Record Video & Audio

Built-In Mic

Built-in microphone cameras are perfect for recording even the quietest audible disturbance. Place the camera on a terrace, patio, porch, or any indoor room in your home for perfect audio recordings with only crisp, clear quality.

Learn More
24/7 Recording

Excellent Day and Night Vision

GW’s high-quality LEDs allow these HD IP cameras to see up to 130ft in complete darkness for 24-hour-a-day protection. GW Cameras use the latest high intensity IR LED technologies for maximum coverage. The image shown is an actual capture from a 4K camera in total darkness.

IR range and image quality can be affected by surfaces that absorb or reflect the IR light differently when in total darkness. Camera location or position may need to be adjusted to optimize the images. Some ambient lighting provides the best results for night surveillance.

Durable Housing

IP67 Weatherproof Rating

An IP67-rated security camera has a rugged design and durable construction that’s rated for general outdoor use. An IP67-rated camera offers excellent performance even in harsh conditions such as: Dust storms, Wind, rain, sleet, even blowing snow. What performance specs can you count on from an IP67 standardized rating? You can count on an IP67 to provide the following:

Level 6 Dust Protection: The highest level of dust protection, with no intrusion of dust whatsoever permitted.
Level 7 Water Protection: The third-highest level of water protection, impervious to precipitation or hose-directed water streams, blowing snow and sleet.

24/7 Reliable Recording:

Reliability is non-negotiable in security. Our NVR provides 24/7 recording, rain or shine, day or night, so you can trust your system to capture every critical moment, no matter when it happens.

GW42-4264NV8-2

Learn More

Crystal-Clear Recording

See every detail with absolute clarity! Our NVR supports 12MP resolution, ensuring that you never miss a single pixel.

Scalability

Expandable storage of up to 80TB, ensuring you have ample space for all your valuable footage.

FREE Mobile App and Remote View

Monitor your property effortlessly, whether you’re at home or halfway around the world.

Intelligent Object Detection

NVR Smart Search goes beyond simple motion detection. It can identify specific objects within the video feed.

H.265 Encoding

This advanced technology maximizes storage space and minimizes bandwidth usage, without compromising on video quality.

PoE Switch Included

Reliable power delivery to connect IP cameras and NVR in a single, efficient solution.

Downloads & Resources

pdf

How to add 41/42 series NVR to GWView

GWStation Icon

Desktop Software: GW Station

pdf

GW42 Manual

GW832501M64-16T

Package Includes:

  • GW42-4264NV8-2: 64-Channel H.265 NVR with 2 x 8TB Hard Drive
  • 2 x GWSW2402G: 24-Port PoE Switch
  • 1 x GWSW1602G: 16-Port PoE Switch
  • 64 x GW832501M: 8MP Bullet Cameras
  • 32 x GWCAT100: 100ft CAT5 Cables
  • 32 x GWCAT60: 60ft CAT5 Cables
  • 2-Year Warranty & Free Lifetime Tech Support
Cameras

64 Cameras
Resolution

8 Megapixel
Camera Style

Bullet
Color

White
Focal-Length

2.8mm Fixed Lens
Lens Type

Fixed
Microphone & Speaker

Built-In Microphone
Spot Light

Yes
AI Smart Feature

Human Detection

4 reviews for 64-Channel NVR Security Camera System with 64* 8MP IP POE 2.8mm Fixed Lens Black Bullet Security Cameras, Built-in Microphone, Human Detection, Dual-Light

  1. Gary –

    Sharp picture and sound included. Covers what I needed without buying a bunch of extras.

  2. wu –

    Easy to focus

  3. Jordan –

    i like having both infrared and color recording available for night

  4. Nate –

    I don’t need every feature imaginable. Mostly wanted footage i could look back at and clearly see what happened, these are good.

Add a Review

GW832501M Specifications

Model NO. 832501M
Camera
Image Sensor 1/2.7" Progressive Scan CMOS Sensor
Resolution 8MP
Effective Pixels 3840(H)*2160(V)
Compression H.264/H.264+/H.265/H.265+/MJPEG
Audio Compression G711A/U,AAC
TV System PAL/NTSC
Electronic Shutter Time Auto: 1/3-1/100000Sec
Minimun Illumination Color: 0.05 Lux@(F1.6, AGC ON), 0 Lux white light, B/W: 0 Lux with IR
S/N Ratio 60dB
Scanning System Progressive
Video Output Network
Reset Button Optional
Lens
Focal Length & FOV 2.8 mm, horizontal FOV 105°, vertical FOV 57°, diagonal FOV 125°
Lens Type Fixed focal lens, 2.8  mm
Focus Control Fixed
Aperture F1.6
Pixels 8MP
Night Vision
Supplement  Light 38µ x 2PCS(Warm light LED 4000K),38µ x 2PCS IR LED
Supplement  Light Distance IR:40m, Warm light:30m
Supplement  Light Status Auto Control
Supplement  Light Power On Smart, Manual & Timed mode
Network
Ethernet RJ-45 (10/100Base-T)
Wireless N/A
Protocol TCP/IP,IPv4/v6,  ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP,  SMTP, UDP, SNMP,Qos,802.1x
ONVIF Support ONVIF 19.12(Profile S/T)
P2P YES
POE Internal, Support IEEE 802.3af
Video Delay 0.3S (Within the Lan)
Main Stream 1 3840*2160@20fps
Main Stream 2 3200*1800@20fps 2880*1620@20fps
Main Stream 3 1920*1080@30fps 1280*720@30fps
Sub Stream 1 1280*720@20/30fps
Sub Stream 2 720*480@20/30fps
Sub Stream 3 352*288@20/30fps
Tri Stream N/A
IE Brower IE8-11, Google Chrome, Firefox , Mac Safari
Smart Phone iPhone, Android
AI Function
Intelligent Analysis Intrusion Detetion(based  on human and Vehicle Detection), Motion detection based on human detection
Camera Features
Day/Night Color/ B&W (IR-CUT )
Image Config Saturation/Brightness/Contrast  /Sharpness, Mirror, 3D NR , White Balance, Anti Flicker, Video Tampering,HLC
Full Color Support
Corridor Pattern Support
Defog  Mode Support
ROI Support
BLC Support
WDR 120dB
Motion Detection Support(support  enable the detection based on human movement only)
Privacy  Masking 3 Rectangular Zone
Recording Mode NVR/CMS/Web
Language Chinese Simplified, Chinese Traditional, English, Russian, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian,  Arabic, Vietnamese, Thai, Hungarian
Interface
Audio 1 Built-in MIC   or Optional Audio IN，Optional Audio IN/OUT or Optional 1 Built-in MIC and Audio IN or N/A
Alarm N/A
SD Card Slot Optional External, Support Max 256GB or Optional Internal, Support Max 256GB or  N/A
RS485 N/A
General
Housing Metal , IP67
Anti-cut Bracket NO
IR Cut Filter YES
Operation Temperature -20℃ ~ +60℃ RH95% Max
Storage Temperature -20℃ ~ +60℃ RH95% Max
Power Source DC12V±10%, 700mA
Dimension 169x67.5x70mm
Weight 420g

GW42-4264NV8-2 Specifications

Model GW42-4264NV8-2
Decoding
Decoding Format Ultra 265, H.265, H.264
Decoding Capability Smart Off：2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 64 x 720P@30
Smart On：1 x 32MP@30, 3 x 16MP@30, 4 x 12MP@30, 6 x 4K@30, 8 x 6MP@30, 9 x 5MP@30, 12 x 4MP@30, 16 x 3MP@30, 24 x 1080P@30, 48 x 720P@30
Decoding Capability Description The resolution of each channel cannot exceed 8192 pixels in length or width
Audio Compression G.711A, G.711U
Network
Incoming Bandwidth Smart Off：384Mbps
Smart On：200Mbps
Outgoing Bandwidth Smart Off：384Mbps
Smart On：200Mbps
Remote Users 128
Protocols TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4
Browser(Plugin) IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Video/Audio Input
IP Video Input 64‑ch
RCA Audio Input 1‑ch
Video/Audio Output
HDMI Output 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Audio Output 2‑ch
Liveview Display HDMI1 and VGA1: 1/4/6/8/9/16/25/36/64;
HDMI2 and VGA2: 1/4/6/8/9/16
Corridor Mode Screen HDMI1 and VGA1: 3/4/5/7/9/10/12/16/32; HDMI2 and VGA2: 3/4/5/7/9/10/12/16
Two‑way Audio
Two‑way Audio 1‑ch, RCA (Using the audio input and output)
Snapshot
FTP/Schedule/Event Snapshot 16‑ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution)
Recording
Recording Resolution 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Smart
VCA Detection by IPC Face Detection, Face Comparison, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring
Smart by NVR Face Detection, Face Comparison, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD)
VCA Search Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non‑Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, SmartSearch+, AcuSearch
Smart by IPC All channels (up to 16 images/s in total)Face Detection, Face Comparison, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
Vehicle Picture Library Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
SIP by NVR 8‑ch
UMD by NVR 16‑ch
Capacity of Snapshot Records 3 millions records for face snapshot, 2 millions records for vehicle snapshot, 2 millions records for SIP, 2 millions records for video Metadata
Alarm
General Alarm Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded
GUI Language
GUI Language 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA 8 SATA Interfaces
Capacity Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)
Disk Group Support
Redundant Storage Support
Disk Array Type RAID 0, 1, 5, 6, 10
External Interface
Network Interface 2 RJ45 10 M/100 M/1000 M self‑adaptive Ethernet Interface
USB Front panel: 2 × USB2.0, Rear panel: 2 × USB3.0
RS485 1
RS232 1
Alarm In 16‑ch
Alarm Out 10‑ch
eSATA 1
Power Output 12 V
Power Supply AC 100~240V
Working Environment
Working Temperature ‑10 ℃ to 50 ℃ (14 ℉ to 122 ℉)
Working Humidity ≤ 90% RH (non‑condensing)
Power Consumption (without HDD) ≤ 35W
Dimensions
Weight (without HDD) ≤ 5.5Kg (12.1lb)
Height 2U
Dimensions 442mm × 432mm × 86mm (17.4"×17.0"×3.4")
Certification
Certification CE; FCC; UL; RoHS; WEEE
CE EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035
FCC Part15 Subpart B

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Send me a notification for each new answer.

Related products

-41%
GW Security 32 Channel 5MP 1920P IP PoE Security Camera System, 4K NVR with 32 × Outdoor/Indoor 2.8-12mm Varifocal Zoom 5.0 Megapixel 1920P Cameras

32 Channel Security Camera Systems

32 Channel NVR Security Camera System with 32 * 5MP IP Bullet 2.8-12mm Varifocal Lens Camera, Human Detection, 4X Optical Zoom, Built-In Microphone, PoE

Original price was: $7,499.99.Current price is: $4,449.00.
Add to cart
-49%
GW Security 16 Channel 5MP 1920P IP PoE Security Camera System, 4K NVR with 12 × Outdoor/Indoor 2.8-12mm Varifocal Zoom 5.0 Megapixel 1920P Cameras

16 Channel Security Camera Systems

16 Channel NVR Security Camera System with 12 * 5MP IP Bullet 2.8-12mm Varifocal Lens Camera, Human Detection, 4X Optical Zoom, Built-In Microphone, PoE

Original price was: $3,499.99.Current price is: $1,799.00.
Add to cart
-46%
GW Security 5 MP 4 Channel PoE/IP H.265 Security Camera System, 4K NVR & 4 × Outdoor/Indoor 2.8-12mm Varifocal Zoom 5.0 Megapixel 1920P Bullet Security Cameras, part of GW Security's collection of 5MP HD IP POE Security Cameras

4 Channel Security Camera Systems

8 Channel NVR Security Camera System with 4 * 5MP IP Bullet 2.8-12mm Varifocal Lens Camera, Human Detection, 4X Optical Zoom, Built-In Microphone, PoE

Original price was: $1,199.99.Current price is: $649.00.
Add to cart
-41%
GW Security 32 Channel Security Camera System, 5MP (2592x1944p) 2.8-12 mm Varifocal Lens 4x Optical Zoom PoE IP 24 Dome Cameras & 4K NVR, part of GW Security's collection of security cameras for sale

32 Channel Security Camera Systems

32 Channel NVR Security Camera System with 24 * 5MP IP Dome 2.8-12mm Varifocal Lens Camera, Human Detection, 4X Optical Zoom, Built-In Microphone, Vandal-Proof, PoE

Original price was: $5,849.99.Current price is: $3,449.00.
Add to cart
-47%
GW Security 4 Channel 5MP 1920P IP PoE Security Camera System, 4K NVR with 2 × Outdoor/Indoor 2.8-12mm Varifocal Zoom 5.0 Megapixel 1920P Cameras, part of GW Security's collection of 5MP HD IP POE Security Cameras

4 Channel Security Camera Systems

8 Channel NVR Security Camera System with 2 * 5MP IP Bullet 2.8-12mm Varifocal Lens Camera, Human Detection, 4X Optical Zoom, Built-In Microphone, PoE

Original price was: $849.99.Current price is: $449.00.
Add to cart
-51%
GW Security 8 Channel 5MP H.265 POE/IP Security Camera System, 8ch 4K NVR & 4 × 5MP IP PoE Fixed Lens Spotlight Bullet Security Camera, Two-way Audio, Full-time Color Night Vision, part of GW Security's HD IP Security Camera Stystem collecion

5MP Security Camera System

8-Channel 5MP IP POE System with 8 × 2.8-12mm Varifocal Zoom Bullet Cameras & 4K NVR

Original price was: $1,849.99.Current price is: $899.00.
Add to cart
-41%
GW Security 32 Channel 5MP H.265 POE/IP Security Camera System, 32ch 4K NVR & 32 × 5MP IP Turret Security Cameras, Video Surveillance System for 24/7 Recording

32 Channel Security Camera Systems

32 Channel NVR Security Camera System with 32 * 5MP IP Turret 2.8mm Fixed Lens Camera, Human Detection, Built-In Microphone, PoE

Original price was: $6,149.99.Current price is: $3,649.00.
Add to cart
-40%
GW Security 4 Channel 5MP H.265 POE/IP Security Camera System, 8ch 4K NVR & 4 × 5MP IP Turret Security Cameras, Video Surveillance System for 24/7 Recording, part of GW Security's HD IP Security Camera Stystem collecion

4 Channel Security Camera Systems

8 Channel NVR Security Camera System with 4 * 5MP IP Turret 2.8mm Fixed Lens Camera, Human Detection, Built-In Microphone, PoE

Original price was: $999.99.Current price is: $599.00.
Add to cart
64-Channel NVR Security Camera System with 64* 8MP IP POE 2.8mm Fixed Lens Black Bullet Security Cameras, Built-in Microphone, Human Detection, Dual-Light
64-Channel NVR Security Camera System with 64* 8MP IP POE 2.8mm Fixed Lens Black Bullet Security Cameras, Built-in Microphone, Human Detection, Dual-Light
Model # GW832501M64-16T
