Original price was: $6,173.30.$3,703.98Current price is: $3,703.98.
The newest generation of security camera systems is here. With Commercial 5MP resolution, this surveillance system from GW Security delivers an impressive level of detail for your security monitoring. This system includes our NVR3232 4K Network Video Recorder and comes with a high-capacity POE switch, eliminating the need for additional equipment. Whether you’re safeguarding your home or monitoring your business, this powerful system is designed to protect what matters most.
NVR3232-SECU5-71MIC-Specifications
4K NVR can support up to 32 cameras
32 × 5MP Dome IP Camera
Maximum night vision range
Expandable up to 20TB
GWView App
5MP video has 100% more pixels in a frame than standard 1080P (2MP) HD. Additional pixels make the digital zoom more effective, providing more details at close distances or the ability to digitally zoom in on details at a greater distance than before.
Greatly reduce the number of false motion alarms with AI Cameras. AI cameras not only detect motion, the camera alerts when motion is created by a person or a vehicle. Get quick, relevant and accurate data delivered right to your smartphone via push notifications.
Traditional motion detection often creates vast amounts of false alarms in outdoor settings such as trees shaking, vegetation moving with the wind, and other small animals. Our new AI technology is relevant motion detection, seeing only vehicles and human activity. Sending only notifications that matter most.
Built-in microphone cameras are perfect for recording even the quietest audible disturbance. Place the camera on a terrace, patio, porch, or any indoor room in your home for perfect audio recordings with only crisp, clear quality.
With Power over Ethernet (PoE), you only need to connect your Ethernet cable to power your PoE security cameras. Data also travels both ways through an Ethernet cable, PoE software not only sends data and commands to devices, but it also collects data. This gives you flexibility to install your security cameras almost anywhere you want, without the extra worries of keeping them plugged in nearby electrical outlets.
Optical zoom is the best quality of zoom, using the lens in the camera to magnify the scene to provide the best and clearest image. Optical zoom is like using a pair of binoculars to see farther away. With 4X optical zoom, you are given more choices for camera placement and zoom into what is most important. The lens inside the camera has the ability to move producing much better-quality images.
Digital zoom is available when used with our security DVR recorders and is useful for HD security cameras with resolutions of 1080P and higher. Since higher resolution cameras and the better the quality of the digital zoom produce the most detailed images.
While digital zoom can be done after video has been recorded, optical zoom needs to be executed or set in live video at the actual moment the incident of interest happens.
A 2.8~12mm Manual Zoom Varifocal Lens offers much more flexibility than cameras with a fixed lens and allows you to adjust the angle of view between 125 degrees to 37 degrees.
A smaller lens value shows a shorter viewing distance with a wider field of view angle; a larger lens value allows for a further viewing distance but a narrower field of view angle.
GW’s high-quality LEDs allow these HD IP cameras to see up to 130ft in complete darkness for 24-hour-a-day protection. GW Cameras use the latest high intensity IR LED technologies for maximum coverage. The image shown is an actual capture from a 5MP camera in total darkness.
IR range and image quality can be affected by surfaces that absorb or reflect the IR light differently when in total darkness. Camera location or position may need to be adjusted to optimize the images. Some ambient lighting provides the best results for night surveillance.
An IP66-rated security camera has a rugged design and durable construction that’s rated for general outdoor use. An IP66-rated camera offers excellent performance even in harsh conditions such as: Dust storms, Wind, rain, sleet, even blowing snow. What performance specs can you count on from an IP66 standardized rating? You can count on an IP66 to provide the following:
Level 6 Dust Protection: The highest level of dust protection, with no intrusion of dust whatsoever permitted.
Level 6 Water Protection: The third-highest level of water protection, impervious to precipitation or hose-directed water streams, blowing snow and sleet.
up to 4K/8MP/5MP/3MP 1536p @ 30fps Realtime each channel
NVR built-in 3 USB ports, 2 SATA HDD port(up to 10TB each, total 20TB)
Quick Access QR Code Remote Viewing on iPhone, iPad, and Android (w/ included Free app)
Smart search for selected area in the video, and smart playback to improve the efficiency.
Supports VGA and HDMI cables.
Remotely Access Using Standard Windows and Mac Browsers.
GW Security cameras gives you full management of your belongings wherever you go. Get notified of actual movements directly to your phone when you aren’t there. Be informed of any dangers invading your space in real-time.
Receive a photo to your e-mail.
Receive push updates to any mobile device.
10 second video playback alert videos

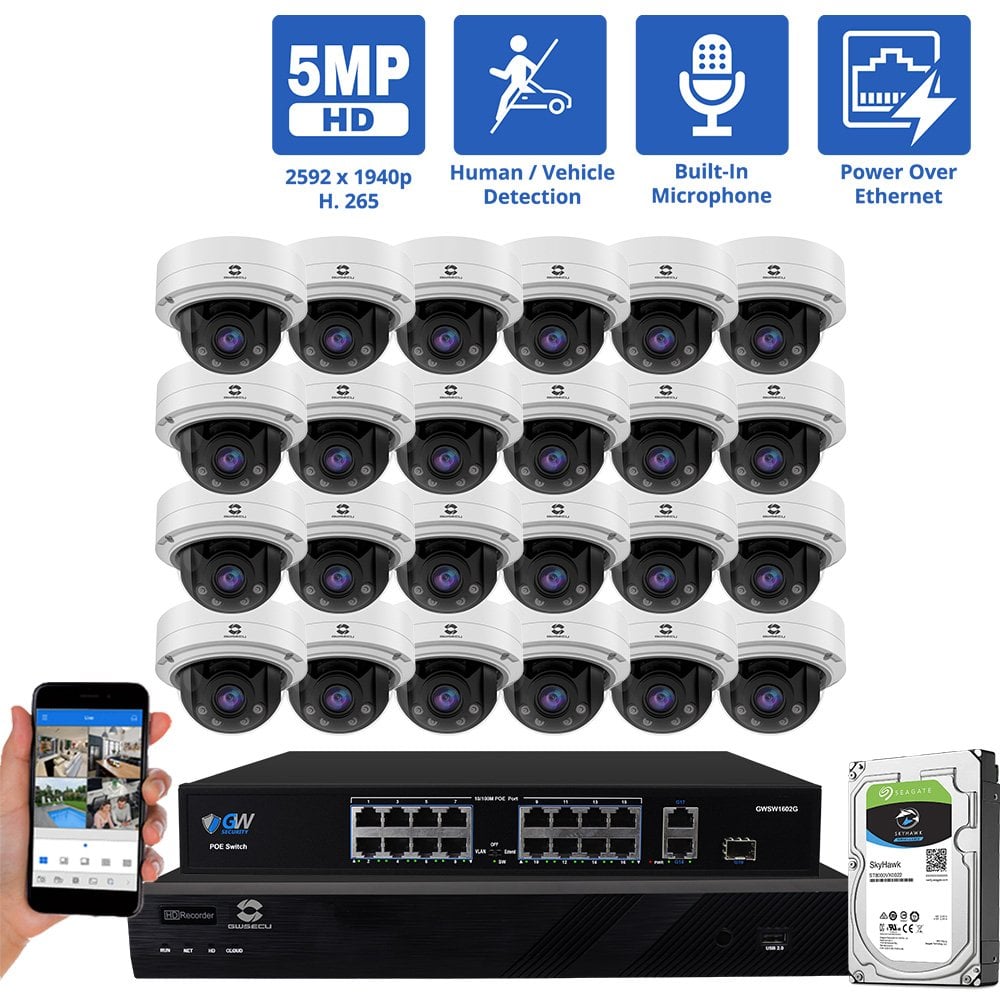

1 x G53224SD57
( NVR3232: 32-Channel H.265 NVR with 8TB Hard Drive
1 x 24 Port PoE Switch
1 x 24 x SECU5-71MIC: 5MP Dome Cameras )
12 x GWCAT100: 100ft CAT5 Cables
12 x GWCAT60: 60ft CAT5 Cables
| Cameras | 24 Cameras |
|---|---|
| Resolution | 5 Megapixel |
| Camera Style | Dome |
| Color | White |
| Focal-Length | 2.8-12mm Varifocal Lens |
| IR Distance | 100ft |
| Lens Type | Varifocal |
| Microphone & Speaker | Built-In Microphone |
| Spot Light | No |
| AI Smart Feature | Vehicle Detection / Human Detection |

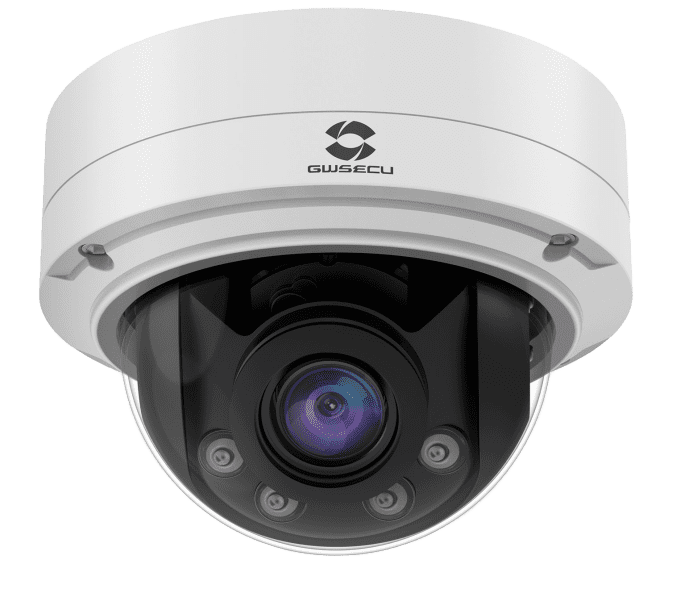

| Model | YC-W705AHBB57BA |
| Camera | |
| Image Sensor | 1/2.7" 5MP CMOS |
| Effective Pixels | 2592(H)×1944 (V) |
| Electronic Shutter | AUTO, 1/25s ~ 1/100000s |
| Min. Illumination | [email protected](AGC ON), 0Lux IR on |
| Day/Night | Auto/Color/(B/W)/Timing |
| WDR | Digital WDR |
| White Balance | Auto/Manual |
| AGC/BLC/HLC | Support |
| DNR | 2D/3D DNR |
| Other | Multi-lines OSD, Motion Detection, Privacy Mask, Mirror |
| Encode | |
| Video Standard | H.264/H.265 |
| Video Resolution | Main Stream: 25fps@5MP(2592x1944)/30fps@4MP/3MP/1080P/720P Sub stream: 30fps@D1/VGA/360P/CIF, etc. |
| Video Bitrates | 64Kbps - 8Mbps, VBR/CBR |
| Audio Standard | G.711-u/G.711-a/AAC |
| Built-in Mic | Yes |
| Built-in Speaker | No |
| Smart Event | Human Detection Motion Detection |
| Led | |
| Led | 4 pcs IR Led |
| Distance | 20-30 M |
| Lens | |
| Focal length | 2.8-12 mm VF Lens |
| Optional Function | |
| POE, etc. | |
| Network Services | |
| Protocol | HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc. |
| P2P | Yes |
| Web | IE , Firefox 32bit ESR, etc. |
| Media | CMS, Android, IOS |
| ONVIF | 17.06 compatible |
| General | |
| Network Port | 1-RJ45, 100Mbps, POE optional |
| Power Supply | 12 VDC ± 10% |
| Power Consumption | < 8 W |
| Operating Temp. | -20℃-(+60)℃, 10%-90%RH |
