Original price was: $3,425.25.$2,055.15Current price is: $2,055.15.
The newest generation of security camera systems is here. With Commercial 8MP resolution, this surveillance system from GW Security delivers an impressive level of detail for your security monitoring. This system includes our NVR3216-P16 4K Network Video Recorder and comes with a high-capacity POE switch, eliminating the need for additional equipment. Whether you’re safeguarding your home or monitoring your business, this powerful system is designed to protect what matters most.
NVR3216-P16-SECU8-28NIP-Specifications
4K NVR can support up to 16 cameras
12 × 8MP Bullet IP Camera,
Maximum night vision range
Expandable up to 20TB
GWView App
4K video has 400% more pixels in a frame than standard 1080P (2MP) HD. Additional pixels make the digital zoom more effective, providing more details at close distances or the ability to digitally zoom in on details at a greater distance than before.
Greatly reduce the number of false motion alarms with AI Cameras. AI cameras not only detect motion, the camera alerts when motion is created by a person or a vehicle. Get quick, relevant and accurate data delivered right to your smartphone via push notifications.
Traditional motion detection often creates vast amounts of false alarms in outdoor settings such as trees shaking, vegetation moving with the wind, and other small animals. Our new AI technology is relevant motion detection, seeing only vehicles and human activity. Sending only notifications that matter most.
Audio recordings can be a good addition to improve your security situation where video recordings cannot provide. A built-in microphone is an extra feature of the camera, allowing synced video and audio recordings in real time. Best used in your home or business.
Please note that there are may be privacy laws in your area that do not allow or limit audio surveillance. Double check with your local authorities before installing your cameras and utilizing any audio recording functions.
Scare intruders away with spotlight IP cameras. These ultra-bright spotlight cameras can sufficiently blind intruders and make it easier for you to identify them in live camera footage. Stop them in their tracks before they cause any damage to your property.
With Power over Ethernet (PoE), you only need to connect your Ethernet cable to power your PoE security cameras. Data also travels both ways through an Ethernet cable, PoE software not only sends data and commands to devices, but it also collects data. This gives you flexibility to install your security cameras almost anywhere you want, without the extra worries of keeping them plugged in nearby electrical outlets.
GW’s high-quality LEDs allow these HD IP cameras to see up to 100ft in complete darkness for 24-hour-a-day protection. GW Cameras use the latest high intensity IR LED technologies for maximum coverage. The image shown is an actual capture from a 8MP camera in total darkness.
IR range and image quality can be affected by surfaces that absorb or reflect the IR light differently when in total darkness. Camera location or position may need to be adjusted to optimize the images. Some ambient lighting provides the best results for night surveillance.
An IP66-rated security camera has a rugged design and durable construction that’s rated for general outdoor use. An IP66-rated camera offers excellent performance even in harsh conditions such as: Dust Storms, Wind, Rain, Sleet, even Blowing Snow. What performance specs can you count on from an IP66 standardized rating? You can count on an IP66 to provide the following:
Level 6 Dust Protection: The highest level of dust protection with no intrusion of dust whatsoever permitted.
Level 6 Water Protection: The second-highest level of water protection, can be submerged in 1 meter (or 3.3 feet) of fresh water for up to 30 minutes.
up to 4K/8MP/5MP/3MP 1536p @ 30fps Realtime each channel
NVR built-in 16 PoE ports and 3 USB ports, 2 SATA HDD port(up to 10TB each, total 20TB)
Quick Access QR Code Remote Viewing on iPhone, iPad, and Android (w/ included Free app)
Smart search for selected area in the video, and smart playback to improve the efficiency.
Supports VGA and HDMI cables.
Remotely Access Using Standard Windows and Mac Browsers.
GW Security cameras gives you full management of your belongings wherever you go. Get notified of actual movements directly to your phone when you aren’t there. Be informed of any dangers invading your space in real-time.
Receive a photo to your e-mail.
Receive push updates to any mobile device.
10 second video playback alert videos

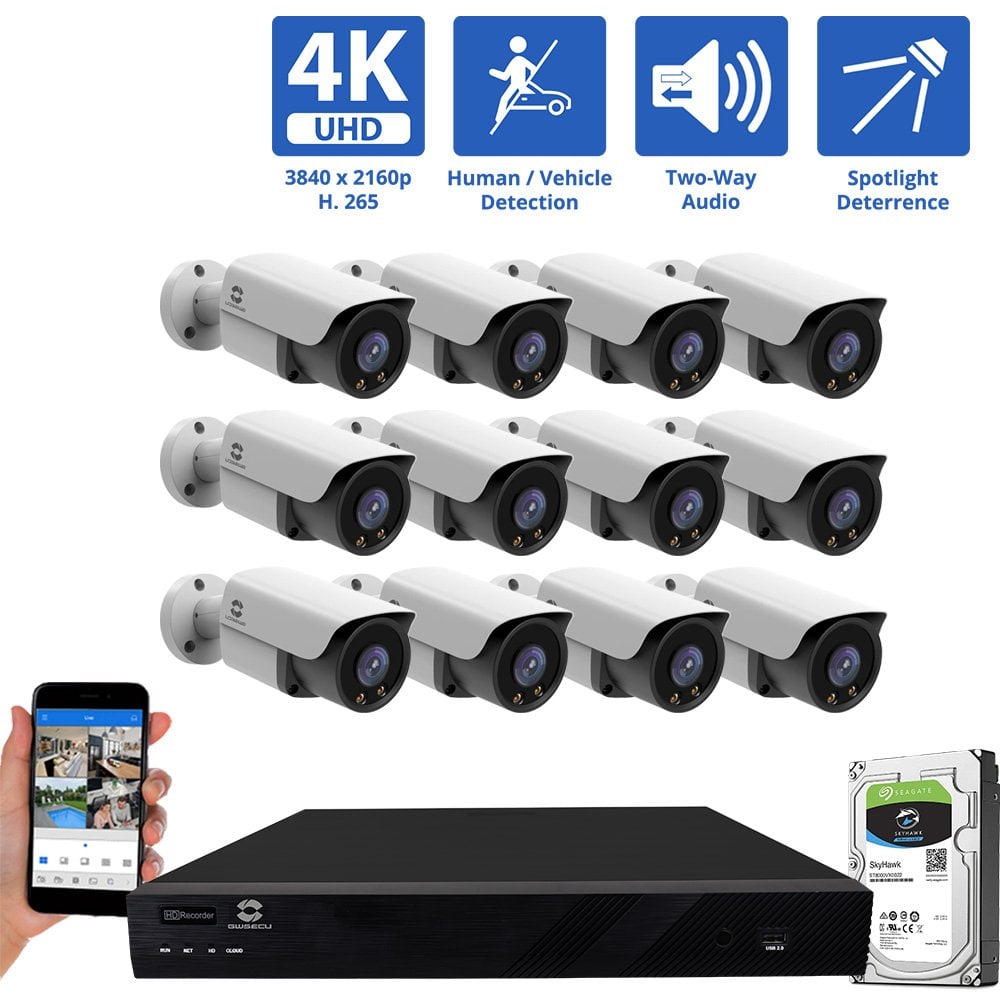

1 x G81612P4B01-MD
( 1 x NVR3216-P16: 16-Channel H.265 NVR with 4TB Hard Drive
12 x SECU8-28NIP: 8MP Bullet Cameras
6 x GWCAT100: 100ft CAT5 Cables
6 x GWCAT60: 60ft CAT5 Cables
| Cameras | 12 Cameras |
|---|---|
| Resolution | 8 Megapixel |
| Camera Style | Bullet |
| Color | White |
| Focal-Length | 2.8mm Fixed Lens |
| IR Distance | 100ft |
| Lens Type | Fixed |
| Microphone & Speaker | Two-way Audio |
| Spot Light | Yes |
| AI Smart Feature | Vehicle Detection / Human Detection |
| Model | N608FADB97KBA |
| Camera | |
| Image Sensor | 1/2.8" 8MP Sony IMX415 CMOS |
| Soc Chip | Sigmastar SSC338Q |
| Effective Pixels | 3840(H)×2160 (V) |
| Exposure Shutter | AUTO/Manual: 1/10s ~ 1/8000s, Max Shutter speed adjustable |
| Day/Night | Auto(Active/passive/schedule)/Day/Night, switch threshold, sensitivity, anti-flicker(Auto/50Hz/60Hz) |
| Image Adjust | Brightness,Saturation,Sharpness,Contrast,Denoise (0-100%) adjustable |
| White Balance | AWB/MWB |
| WDR | Yes |
| Light Mode | Smart(dual-light) / IR / White light, adjustable |
| Light Control | Auto/Manual, Brightness level (0-100%) adjustable |
| DNR | 2D/3D DNR |
| Encode | |
| Video Standard | H.264/H.265/MJPEG |
| Video Resolution | Main Stream: 20fps@8MP(3840x2160)(default),25fps@6MP(3072x2048),30fps@5MP(2592x1944)/4MP(2560x1440)/3MP(2304x1296)/1080P/720P Sub stream: 10fps@720P,30fps@D1(704x576)(default)/(720x480)/VGA(640x480)/QVGA(640x360) (*Note:MJPEG max 1080P) |
| Video Bitrates | Sub stream: 64kbps-8Mbps Sub stream: 64kbps-2048kbps VBR/CBR , quality(1-9), GOP(1-128) |
| Image Rotation | 0 / 90 / 180 / 270 degree adjustable |
| Border Crop | X crop, Y crop |
| Image Mirror | horizon / vertical / horizon&vertical adjustable |
| OSD Overlay | Font size(1-4), position,Time, Title, AM/PM, Color, User OSD, Alarm OSD |
| Privacy Mask | 4 areas |
| Region of Interest | ROI: Each stream support 8 areas |
| Audio Standard | G.711-u/G.711-a/AAC/PCM, AEC |
| Built-in Mic | Yes |
| Built-in Speaker | Yes, two-way audio |
| Led | |
| IR Led | 2 IR led |
| White Led | 2 white-light |
| Distance | 20--30 m |
| Lens | |
| Focal length | F1.6 2.8 mm fixed |
| Language | |
| English, simplified Chinese, Chinese Traditional, Japanese, Korean, German, Polish, Italian, Turkish, Ukraine, Russian, etc. | |
| Smart Detection | |
| Motion Detection | Yes |
| Digital IO Alarm | 1 pair Alarm-in/Alarm-out, normally open/normally close (optional) |
| Human Vehicle Detection | Yes, (2-15 meters) |
| Cross Line Detection | No |
| Perimeter protection | No |
| Face Detection | No |
| Target Detection Type | Human Shape, vehicle, non-motor vehicle |
| Trigger Action Linkage | Snapshot, Record, Relay(Red-blue Led flash) optional, White LED Flash, Voice siren, Micro-SD, Email, FTP, NAS storage (NFS) |
| Simultaneous Detection | Maximum 5 targets simultaneous detection |
| Storage Type | Schedule/Trigger: Micro-SD(512G) , Email, FTP, NAS (NFS) |
| Reset Button | No |
| Network Services | |
| Protocol | HTTP(s)/RTSP/FTP/SMTP/DHCP/NTP/DST/RTP/RTMP/P2P/HiK/IPv4/IPv6/NFS/DDNS |
| IP Address Filtering | Yes (Allow list, Deny list) |
| P2P Mobile APP | Android, IOS |
| Web Access | IE, Firefox, Chrome, Edge, Safari, etc. (Windows/Linux/Mac/Chromebook/Tablet/Mobile phone) |
| PC Tool | Windows, Mac |
| ONVIF | 23.12 compatible (profile S G T M) |
| General | |
| Network Port | 1-RJ45, 100Mbps, POE(IEEE802.3af) |
| Power Supply | 12 VDC ± 10% |
| Power Consumption | < 8 W |
| Operating Temp. | -20℃-(+60)℃, 10%-90%RH |
