Original price was: $2,420.00.$968.00Current price is: $968.00.
The newest generation of security camera systems is here. With Commercial 5MP resolution, this surveillance system from GW Security will bring a brand new level of detail to your security monitoring. This system includes our SECU16NP 4K Network Video Recorder with built-in POE switch to avoid extra equipment. Whether you are looking to monitor your business or protect your home, this powerful security camera system will help you secure the things that matter most.
SECU16NP-SECU5-33NMIC-Specifications
4K NVR can support up to 16 cameras

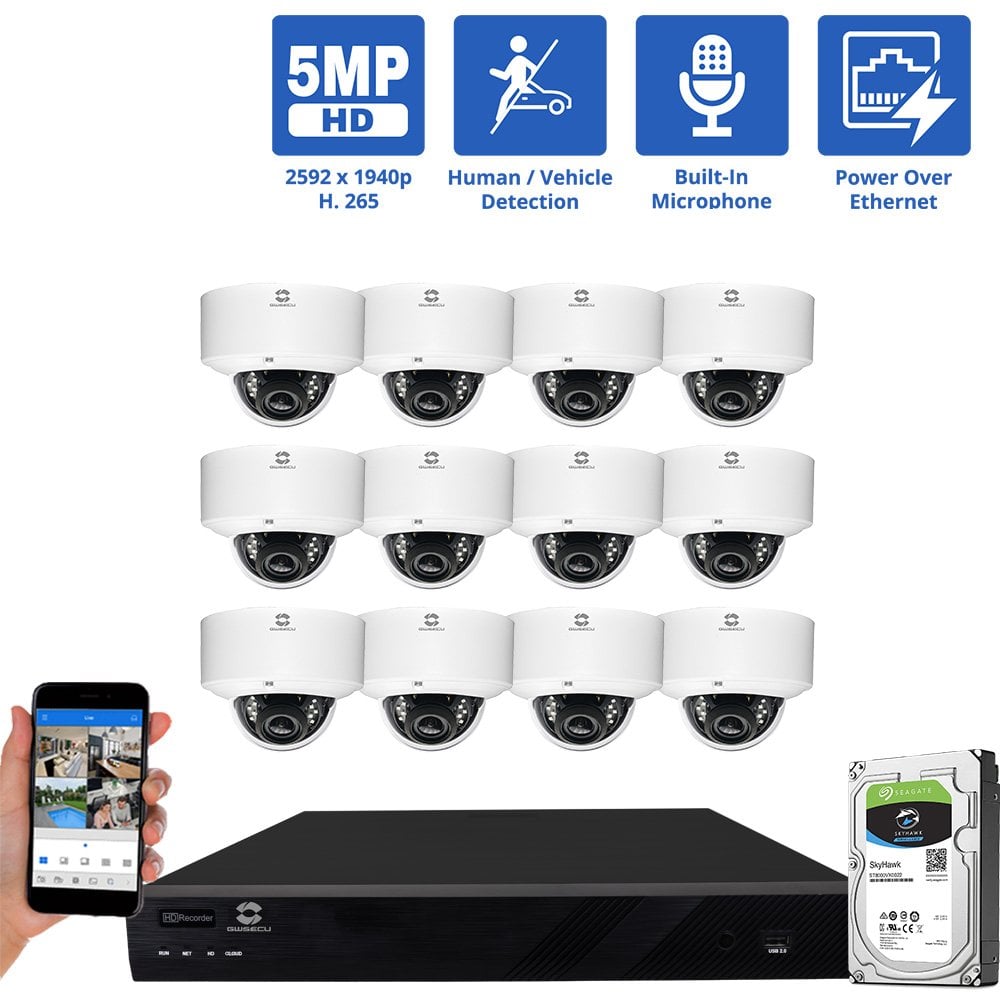

12 × 5MP Dome IP Camera
Maximum night vision range
Expandable up to 20TB
GWView App
5MP video has 100% more pixels in a frame than standard 1080P (2MP) HD. Additional pixels make the digital zoom more effective, providing more details at close distances or the ability to digitally zoom in on details at a greater distance than before.
Greatly reduce the number of false motion alarms with AI Cameras. AI cameras not only detect motion, the camera alerts when motion is created by a person or a vehicle. Get quick, relevant and accurate data delivered right to your smartphone via push notifications.
Traditional motion detection often creates vast amounts of false alarms in outdoor settings such as trees shaking, vegetation moving with the wind, and other small animals. Our new AI technology is relevant motion detection, seeing only vehicles and human activity. Sending only notifications that matter most.
GW’s high-quality LEDs allow these HD IP cameras to see up to 100ft in complete darkness for 24-hour-a-day protection. GW Cameras use the latest high intensity IR LED technologies for maximum coverage. The image shown is an actual capture from a 8MP camera in total darkness.
IR range and image quality can be affected by surfaces that absorb or reflect the IR light differently when in total darkness. Camera location or position may need to be adjusted to optimize the images. Some ambient lighting provides the best results for night surveillance.
With Power over Ethernet (PoE), you only need to connect your Ethernet cable to power your PoE security cameras. Data also travels both ways through an Ethernet cable, PoE software not only sends data and commands to devices, but it also collects data. This gives you flexibility to install your security cameras almost anywhere you want, without the extra worries of keeping them plugged in nearby electrical outlets.
An IP66-rated security camera has a rugged design and durable construction that’s rated for general outdoor use. An IP66-rated camera offers excellent performance even in harsh conditions such as: Dust storms, Wind, rain, sleet, even blowing snow. What performance specs can you count on from an IP66 standardized rating? You can count on an IP66 to provide the following:
Level 6 Dust Protection: The highest level of dust protection, with no intrusion of dust whatsoever permitted.
Level 6 Water Protection: The third-highest level of water protection, impervious to precipitation or hose-directed water streams, blowing snow and sleet.
up to 4K/8MP/5MP/3MP 1536p @ 30fps Realtime each channel
NVR built-in 16 PoE ports and 3 USB ports, 2 SATA HDD port(up to 10TB each, total 20TB)
Quick Access QR Code Remote Viewing on iPhone, iPad, and Android (w/ included Free app)
Smart search for selected area in the video, and smart playback to improve the efficiency.
Supports VGA and HDMI cables.
Remotely Access Using Standard Windows and Mac Browsers.
GW Security cameras gives you full management of your belongings wherever you go. Get notified of actual movements directly to your phone when you aren’t there. Be informed of any dangers invading your space in real-time.
Receive a photo to your e-mail.
Receive push updates to any mobile device.
10 second video playback alert videos
| Cameras | 12 Cameras |
|---|---|
| Resolution | 5 Megapixel |

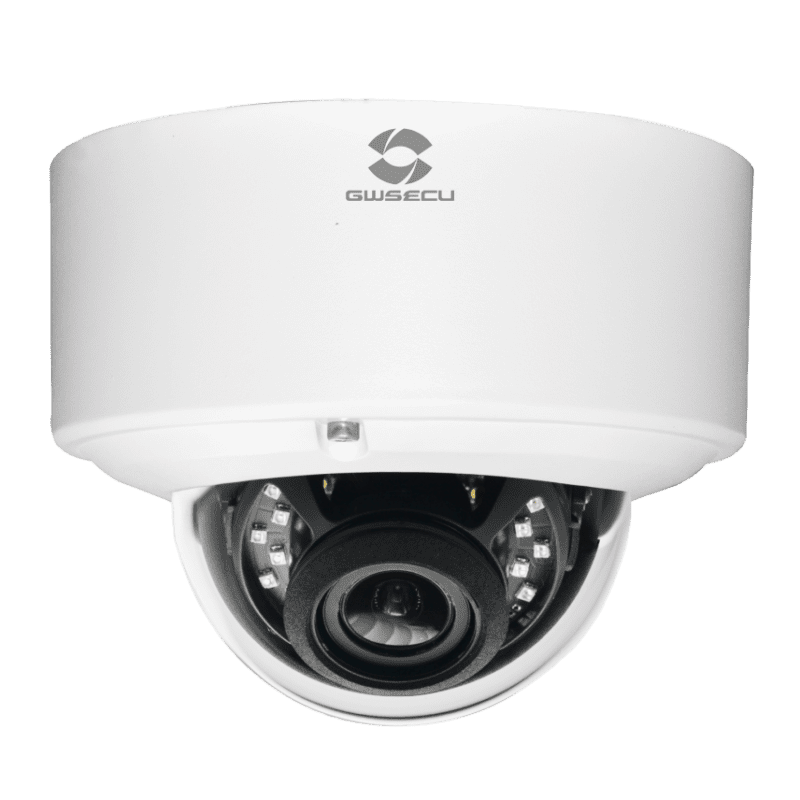

| Camera Style | Dome |
| Color | White |
| Focal-Length | 2.8mm Fixed Lens |
| IR Distance | 100ft |
| Lens Type | Fixed |
| Microphone & Speaker | Built-In Microphone |
| Spot Light | No |
| AI Smart Feature | Vehicle Detection / Human Detection |
| Model | |
| Camera | |
| Image Sensor | 1/3" 4MP Galaxycore GC4653 CMOS |
| Soc Chip | Sigmastar SSC377D |
| Effective Pixels | 3072(H)×2048 (V) |
| Exposure Shutter | AUTO/Manual: 1/10s ~ 1/8000s, Max Shutter speed adjustable |
| Day/Night | Auto(Active/passive/schedule)/Day/Night, switch threshold, sensitivity, anti-flicker(Auto/50Hz/60Hz) |
| Image Adjust | Brightness,Saturation,Sharpness,Contrast,Denoise (0-100%) adjustable |
| White Balance | AWB/MWB |
| WDR | No |
| Light Mode | Smart(dual-light) / IR / White light, adjustable |
| Light Control | Auto/Manual, Brightness level (0-100%) adjustable |
| DNR | 2D/3D DNR |
| Encode | |
| Video Standard | H.264/H.265 |
| Video Resolution | Main Stream: 25fps@6MP(3072x2048),30fps@5MP(2592x1944)(default)/4MP(2560x1440)/3MP(2304x1296)/1080P/720P Sub stream: 10fps@720P,30fps@D1(704x576)(default)/(720x480)/VGA(640x480)/QVGA(640x360) |
| Video Bitrates | Sub stream: 64kbps-8Mbps Sub stream: 64kbps-2048kbps VBR/CBR , quality(1-9), GOP(1-128) |
| Image Snapshot | Sub Stream(SD) snapshot |
| Image Rotation | 0 / 90 / 180 / 270 degree adjustable |
| Border Crop | X crop, Y crop |
| Image Mirror | horizon / vertical / horizon&vertical adjustable |
| OSD Overlay | Font size(1-4), position,Time, Title, AM/PM, Color, User OSD, Alarm OSD |
| Privacy Mask | 4 areas |
| Region of Interest | ROI: Each stream support 8 areas |
| Audio Standard | G.711-u/G.711-a/AAC/PCM, AEC |
| Built-in Mic | Yes |
| Built-in Speaker | (optional) |
| Led | |
| IR Led | 18 SMD IR led |
| White Led | No |
| Distance | 20 -30 m |
| Lens | |
| Focal length | 2.8 fixed |
| Language | |
| English, simplified Chinese, Chinese Traditional, Japanese, Korean, German, Polish, Italian, Turkish, Ukraine, Russian, etc. | |
| Smart Detection | |
| Motion Detection | Yes |
| Digital IO Alarm | 1 pair Alarm-in/Alarm-out, normally open/normally close (optional) |
| Human Vehicle Detection | Yes, (2-20 meters) |
| Cross Line Detection | Yes, 4 lines |
| Perimeter protection | Yes, 4 areas |
| Face Detection | Yes, (1-5 meters) |
| Target Detection Type | Human Shape, vehicle, non-motor vehicle, Pet, Face (12px-1000px) |
| Trigger Action Linkage | Snapshot, Record, Relay(Red-blue Led flash) optional, White LED Flash, Voice siren, Micro-SD, Email, FTP, NAS storage (NFS) |
| Simultaneous Detection | Maximum 16 targets simultaneous detection |
| Storage Type | Schedule/Trigger: Micro-SD(512G) , Email, FTP, NAS (NFS) |
| Reset Button | No |
| Network Services | |
| Protocol | HTTP(s)/RTSP/FTP/SMTP/DHCP/NTP/DST/RTP/RTMP/P2P/HiK/IPv4/IPv6/NFS/ DDNS |
| IP Address Filtering | Yes (Allow list, Deny list) |
| P2P Mobile APP | Android, IOS |
| Web Access | IE, Firefox, Chrome, Edge, Safari, etc. (Windows/Linux/Mac/Chromebook/Tablet/Mobile phone) |
| PC Tool | Windows, Mac |
| ONVIF | 23.12 compatible (profile S G T M) |
| General | |
| Network Port | 1-RJ45, 100Mbps, POE(IEEE802.3af) |
| Power Supply | 12 VDC ± 10% |
| Power Consumption | < 8 W |
| Operating Temp. | -20℃-(+60)℃, 10%-90%RH |
| Model | SECU16NP |
| Video/Audio Input | |
| IP Video Input | 16-ch |
| Two-way Audio Input | 1-ch, RCA |
| Network | |
| Incoming Bandwidth | 112Mbps |
| Outgoing Bandwidth | 96Mbps |
| Remote Users | 128 |
| Protocols | ,P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output | |
| HDMI/VGA Output | VGA: 1024X768@60,1280X720@60,1280X1024@60,1920X1080@50,1920X1080@60 HDMI: 4k(3840x2160@30),4k(3840x2160@60),1024X768@60,1280X720@60,1280X1024@60, 1920X1080@50, 1920X1080@60 |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | 16-ch |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 |
| Decoding | |
| Decoding format | Ultra 265, H.265, H.264 |
| Live view/Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/960H/D1/2CIF/CIF |
| Capability | 1 x 4K@30, 2 x 4MP@30, 3 x 3MP@25, 4 x 1080P@30, 8 x 720P@30,16 x D1 |
| Hard Disk | |
| SATA | 2 SATA interfaces |
| Capacity | Up to 10TB for each HDD |
| eSATA | NO |
| External Interface | |
| Network Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces |
| USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB2.0 |
| Alarm In | 4-ch |
| Alarm Out | 1-ch |
| POE | |
| Interface | 16 independent 100Mbps PoE network interfaces |
| Max Power | Max 30W for single port Max 240W in total ( 15W for each ) |
| Supported Standard | IEEE 802.3af/at |
| General | |
| Power Supply | 100~240 VAC Power Consumption: ≤ 9 W(without HDD) |
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 380mm ×315mm × 49.1mm(15.0" × 12.4" ×1.9" ) |
| Weight (without HDD) | ≤2.4kg (5.29 lb) |
