$1,499.00

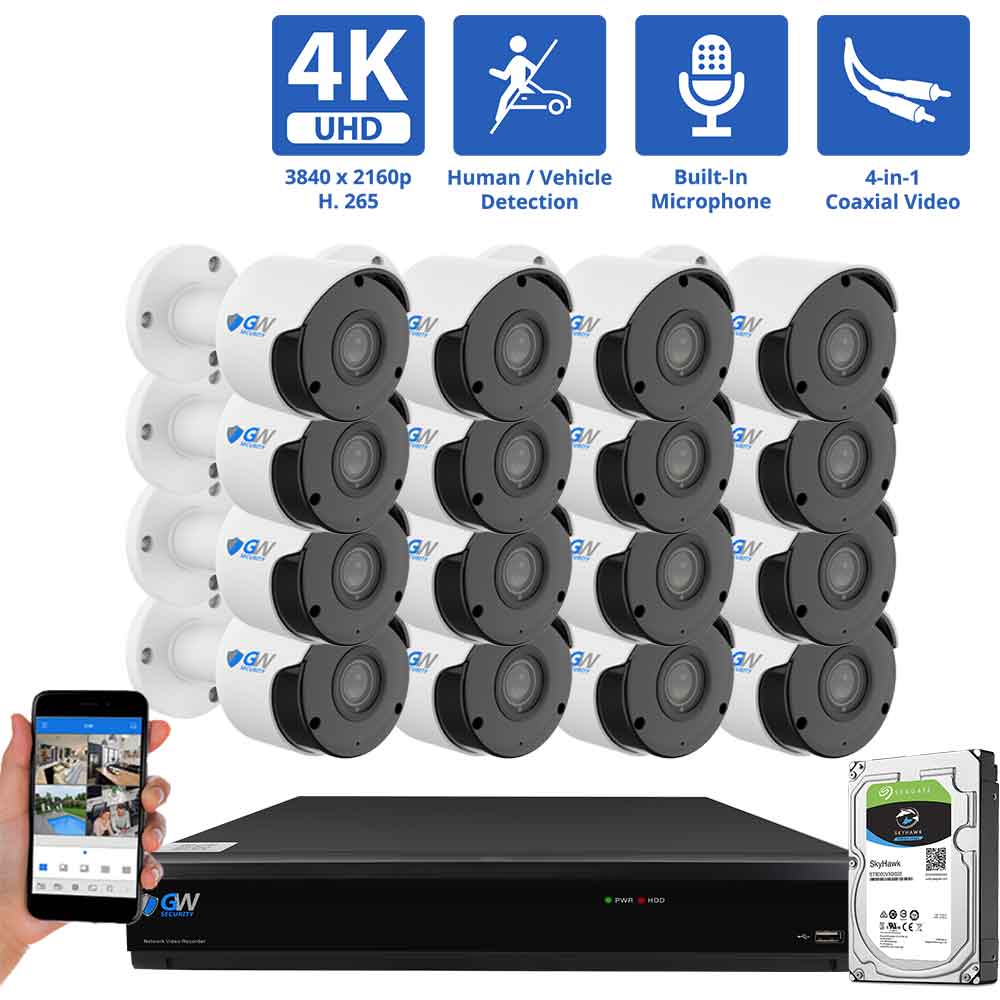

The newest generation of security camera systems is here. With Commercial 4K resolution, this surveillance system from GW Security will bring a brand new level of detail to your security monitoring. This system includes our GW9516XVR 4K Digital Video Recorder. Whether you are looking to monitor your business or protect your home, this powerful security camera system will help you secure the things that matter most.
GW9516XVR-GW837HDMIC Specifications
4K DVR can support up to 16 cameras
16 × 4K Bullet Coaxial cameras
Maximum night vision range
Expandable up to 20TB
RXCamView App
Resolution
SMD IR LED
OSD Over Coaxial
Mobile Viewing
IP66 Rating
TVI/CVI/AHD/CVBS
4K video has 400% more pixels in a frame than standard 1080P (2MP) HD. Additional pixels make the digital zoom more effective, providing more details at close distances or the ability to digitally zoom in on details at a greater distance than before.
Greatly reduce the number of false motion alarms with AI Cameras. AI cameras not only detect motion, the camera alerts when motion is created by a person or a vehicle. Get quick, relevant and accurate data delivered right to your smartphone via push notifications.
Traditional motion detection often creates vast amounts of false alarms in outdoor settings such as trees shaking, vegetation moving with the wind, and other small animals. Our new AI technology is relevant motion detection, seeing only vehicles and human activity. Sending only notifications that matter most.
Built-in microphone cameras are perfect for recording even the quietest audible disturbance. Place the camera on a terrace, patio, porch, or any indoor room in your home for perfect audio recordings with only crisp, clear quality.
GW’s high-quality LEDs allow these HD IP cameras to see up to 65ft in complete darkness for 24-hour-a-day protection. GW Cameras use the latest high intensity IR LED technologies for maximum coverage. The image shown is an actual capture from a 4K camera in total darkness.
IR range and image quality can be affected by surfaces that absorb or reflect the IR light differently when in total darkness. Camera location or position may need to be adjusted to optimize the images. Some ambient lighting provides the best results for night surveillance.
An IP66-rated security camera has a rugged design and durable construction that’s rated for general outdoor use. An IP66-rated camera offers excellent performance even in harsh conditions such as: Dust storms, Wind, rain, sleet, even blowing snow. What performance specs can you count on from an IP66 standardized rating? You can count on an IP66 to provide the following:
Level 6 Dust Protection: The highest level of dust protection, with no intrusion of dust whatsoever permitted.
Level 6 Water Protection: The third-highest level of water protection, impervious to precipitation or hose-directed water streams, blowing snow and sleet.
8MP(15fps)/5MP(20fps)
/4MP/3MP/1080P/720P/960H
DVR built-in 16 Analog ports and 2 USB port, 2 SATA HDD port (up to 10TB each, total 20TB)
Quick Access QR Code Remote Viewing on iPhone, iPad, and Android (w/ included Free app)
Smart search for selected area in the video, and smart playback to improve the efficiency.
Support 1-ch HDMI, 1-ch VGA,HDMI at up 4K lite (3840×2160) resolution.
Remotely Access Using Standard Windows and Mac Browsers.
GW Security cameras gives you full management of your belongings wherever you go. Get notified of actual movements directly to your phone when you aren’t there. Be informed of any dangers invading your space in real-time.
Receive a photo to your e-mail.
Receive push updates to any mobile device.
10 second video playback alert videos
| Cameras | 16 Cameras |
|---|---|
| Resolution | 8 Megapixel |
| Camera Style | Bullet |
| Color | White |
| Focal-Length | 3.6mm Fixed Lens |
| IR Distance | 65ft |
| Lens Type | Fixed |
| Microphone & Speaker | Built-In Microphone |
| Spot Light | No |
| GW Model Name | GW837HDMIC |
| Video | |
| Imaging Device | SC8238 1/2.7" Progressive CMOS |
| Total Pixels | 3872（H）×2180（V） |
| Effective Pixels | 3840（H）×2160（V） |
| Scanning System | progressive scanning |
| Video Output | BNC |
| Resolution | 8MP 3840（H）×2160（V） |
| Max, Framerate | AHD/TVI/CVI: 8MP@15fps，TVI/CVI：8MP@12.5fps，CVBS: 960H |
| Focal Length (Zoom Ratio) | 3.6MM |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H:86.1° / V:46.0° / D:104.0° |
| Min. Object Distance | 2m |
| Lens Type | Fixed lens |
| Operational | |
| Audio | Audio over coaxial |
| Audio Range | 7M |
| IR Distance | 20M |
| On Screen Display | English |
| Day & Night | EXT / Color / B/W |
| Backlight Compensation | GLOBAL / BLC |
| Wide Dynamic Range | N/A |
| Digital Noise Reduction | 2D DNR |
| Gain Control | AUTO |
| White Balance | ATW |
| Electronic Shutter Speed | AUTO |
| Reverse | Mirror |
| Remote control interface | ACP (AHD Coax Protocol) |
| Video Transmission Distance | MAX 300M （ Cable : 5C 2V） |
| Environmental | |
| Operating Temperature / Humidity | -30°C ~ 55°C / 90% |
| Ingress Protection | IP66 |
| Electrical | |
| Input Voltage/Current | 12V DC |
| Power Consumption | IR OFF ≤1W，IR ON ≤4W |
| Mechanical | |
| Color / Material | Plastic |
| Dimension (WxHxD) | Ø99x85.5mm |
| Weight | TBD |
| Laws and Regulations | |
| Safety | CE LVD |
| EMC | CE EMC、FCC |
| ROHS | RoHS2.0 |
