Original price was: $18,599.99.$10,999.00Current price is: $10,999.00.
The newest generation of security camera systems is here. With Commercial 4K resolution, this surveillance system from GW Security will bring a brand new level of detail to your security monitoring. This system includes our GW55128NSN 4K Network Video Recorder. Whether you are looking to monitor your business or protect your home, this powerful security camera system will help you secure the things that matter most.

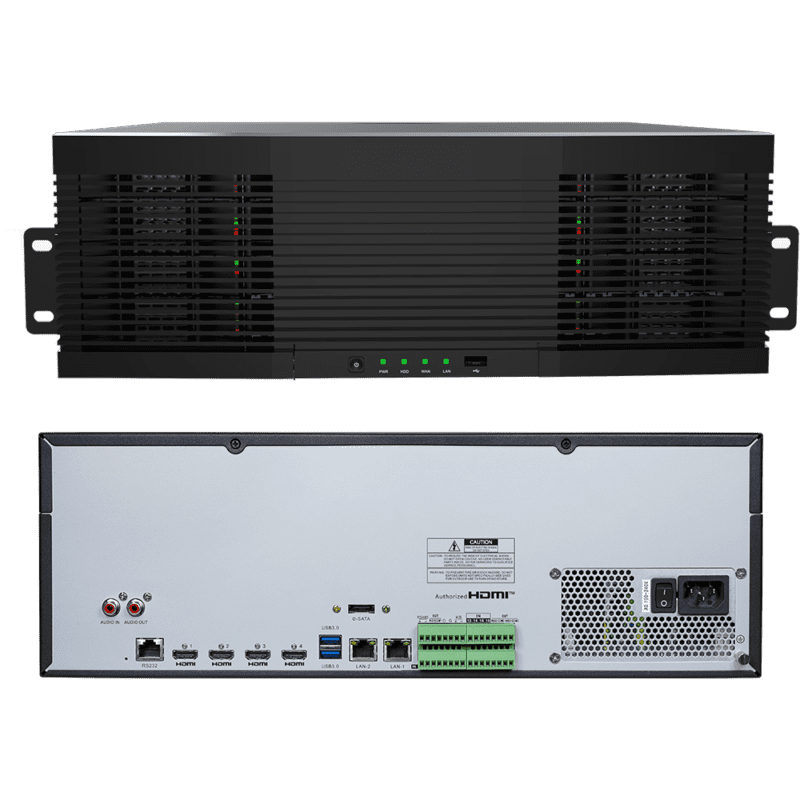

GW55128NSN-GW12537MIC Specifications
4K NVR can support up to 128 cameras
48 × 4K Bullet IP Camera
Maximum night vision range
Expandable up to 288TB
GWCamView App
4K video has 500% more pixels in a frame than standard 1080P (2MP) HD. Additional pixels make the digital zoom more effective, providing more details at close distances or the ability to digitally zoom in on details at a greater distance than before.
With 4000 x 3000 resolution the exceptional high definition will draw you into the picture & the latest and best to deliver cutting-edge image quality, and provide much clearer videos than 4K, 5MP or 4MP surveillance cameras. The quality of the camera and the tense becomes more important at this point because any loss of detail or sharpness is magnified giving you extra security when you zoom in.
Compared with the first-generation technology, the front-end collection and calculation of feature values, and the back-end comparison method reduce the pressure on the back-end NVR. Updated features can access more face recognition cameras, and speed up the recognition speed. The system has two modes to set them in, either Face Detection Mode or Human/Vehicle Detection Mode.
The camera detects a face in the scene and sends the face snapshot to the NVR. Lets you easily recognize who bothers your peaceful life!
Upload an image of a face you want detected through the app. From here you can identify, blacklist or search through footage to recognize whoever you may be looking for.
Search for the intended face pictures by date, channel, face selection, etc. The whitelist has a green mark, the blacklist has a red mark, and a stranger black mark. There is also a map path track playback function .
It is mutually exclusive with the face recognition function, and the human shape and car shape inspection can be inspected at the same time, or you can choose any inspection, which is more flexible. Compared with Motion Detection, this feature has a built-in humanoid detection algorithm. When this function is enabled, the humanoid that detects motion will trigger an alarm, which can reduce the triggering of alarms caused by non-human factors such as tree shaking and small animal activities. Easy to Setup to enter the Human & Vehicle Detection form and the car form can be inspected at the same time or separately.
Color night vision is a camera feature using powerful light sensors to record full color in minimal light. With this improved feature, you get more detail and contrast in night time video recording for the extra security comfort.
Built-in microphone cameras are perfect for recording even the quietest audible disturbance. Place the camera on a terrace, patio, porch, or any indoor room in your home for perfect audio recordings with only crisp, clear quality.
With Power over Ethernet (PoE), you only need to connect your Ethernet cable to power your PoE security cameras. Data also travels both ways through an Ethernet cable, PoE software not only sends data and commands to devices, but it also collects data. This gives you flexibility to install your security cameras almost anywhere you want, without the extra worries of keeping them plugged in nearby electrical outlets.
Digital zoom is available when used with our security DVR recorders and is useful for HD security cameras with resolutions of 1080P and higher. Since higher resolution cameras and the better the quality of the digital zoom produce the most detailed images, 4K resolution security footage provides the best quality.
While digital zoom can be done after video has been recorded, optical zoom needs to be executed or set in live video at the actual moment the incident of interest happens.
An IP66-rated security camera has a rugged design and durable construction that’s rated for general outdoor use. An IP66-rated camera offers excellent performance even in harsh conditions such as: Dust storms, Wind, rain, sleet, even blowing snow. What performance specs can you count on from an IP66 standardized rating? You can count on an IP66 to provide the following:
Level 6 Dust Protection: The highest level of dust protection, with no intrusion of dust whatsoever permitted.
Level 6 Water Protection: The third-highest level of water protection, impervious to precipitation or hose-directed water streams, blowing snow and sleet.
Records up to 12MP resolution
NVR built-in ports, 3 USB ports, 16 SATA HDD port (up to 18TB each, total 288TB)
Quick Access QR Code Remote Viewing on iPhone, iPad, and Android (w/ included Free app)
Smart search for selected area in the video, and smart playback to improve the efficiency.
Support 4-ch HDMI at up 4K(3840×2160) resolution.
Remotely Access Using Standard Windows and Mac Browsers.
Downloads & Resources
How to add GW55NVR to GWCamView/RXCamView
Desktop Software: VMS Client
GW55128NSN Manual
$38.50

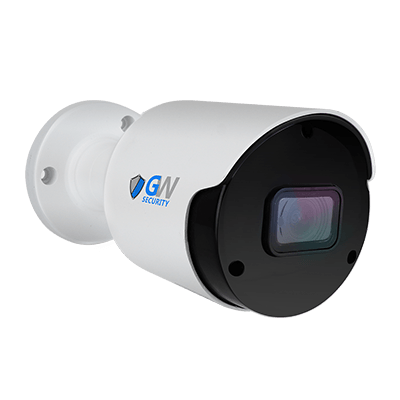

| Cameras | 48 Cameras |
|---|---|
| Resolution | 12 Megapixel |
| Camera Style | Bullet |
| Color | White |
| Focal-Length | 3.6mm Fixed Lens |
| IR Distance | 100ft |
| Spot Light | No |
| Lens Type | Fixed |
| Microphone & Speaker | Built-In Microphone |
| AI Smart Feature | Vehicle Detection / Human Detection, Face Recognition |
| Video | |
|---|---|
| Imaging Device | 1/2.3" |
| Effective Pixels | 12MP 4096(H)×3072(V) |
| Scanning System | Progressive CMOS |
| Min. Illumination | Color 0.002Lux @(F1.2,AGC ON) ; B/W 0lux @ IR ON |
| Framerate | 12MP@15fps, 4K/5MP@30fps |
| Lens Type | |
| Focal Length (Zoom Ratio) | 3.6mm |
| Max. Aperture Ratio | F No. 1.6 |
| Angular Field of View | Horizontal: 87°, Vertical: 63°, Diagonal: 115° |
| Min. Object Distance | 2m |
| Lens Type | Fixed(M12) |
| Operational | |
| IR Viewable Length | Up to 30m |
| Camera Title | On/Off |
| Day & Night | IR cut filter with auto switch（Day/Night/Auto/Schedule） |
| Backlight Compensation | Off/On (5 Zone) |
| Wide Dynamic Range | DWDR |
| Digital Noise Reduction | 3D DNR |
| Motion Detection | Off/On (8 Level) |
| Privacy Masking | Off/On (4 Zone, Rectangle) |
| Gain Control | Auto |
| White Balance | Auto/Manual |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| Mirror | Flip/Rotation |
| On-Board Storage | Micro SD slot, up to 256GB |
| Alarm | N/A |
| Audio | Built-In Microphone |
| Hardware Reset | Yes |
| Smart Feature | PID,LCD,SOD,PD/VD,CC,CD,QD,HM |
| Network | |
| Ethernet | RJ45(10/100BASE-T) |
| Video Compression Format | H.265/H.264 |
| Resolution | Main Stream 12MP（4096x3072）,8MP(3840x2160),5MP(2592x1944,3072x1728), 4MP(2592x1520),3MP(2304x1296),1080P(1920x1080) Sub Steam 1080P(1920x1080)，720P(1280x720),VGA(640x480),QVGA(320x240) Mobile Stream 720P(1280x720),VGA(640x480), QVGA（320x240） |
| Video Quality Ajustment | 8Kbps ~ 16Mbps |
| Bitrate control method | CBR/VBR |
| Streaming Capability | Triple-Stream(Main/Sub/Mobile) |
| Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP |
| Security | IP address filter;complicated password;Authenticated username and password |
| Streaming Method | Unicast/Multicast |
| Application Programming Interface | ONVIF( Profile S/G/T) |
| Environmental | |
| Operating Conditions | -35～+55°C/less than ≤ 95% RH |
| Storage Conditions | -30～+60°C/less than ≤ 95% RH |
| Ingress Protection | IP67 |
| Eletrical | |
| Input Voltage / Current | D12V/POE(IEEE802.3af) |
| Mechanical | |
| Material | Metal |
